Ntn 3G-OTH-109243 — Technical Specifications

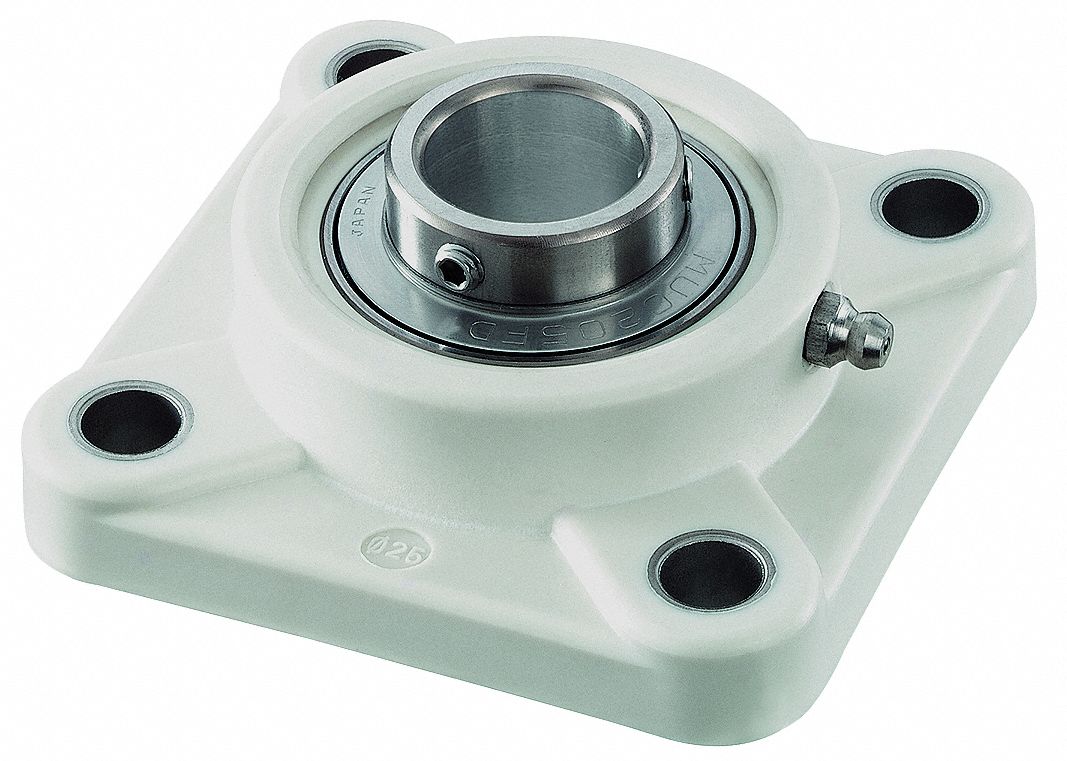

The NTN SUCFPL206-19 is a 4-bolt flange-mount radial ball bearing designed for food-grade applications. It features a 1 3/16 in cylindrical bore, a polymer housing with set screws, and is lubricated with FDA/USDA-H1 solid grease. The bearing uses 3/8 in mounting bolts and has a square flange length of 4 13/64 in.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 4 13/64 in |
| Bore | 1 3/16 in |
| Type | Polymer, Set Screws, Square |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | FDA/USDA-H1 Solid Grease |
| Mounting Bolt Size | 3/8 in |
| Included Bearing Cap | None |
| System Of Measurement | Inch |
| Manufacturer Part Number | SUCFPL206-19 |
