Ntn 3G-OTH-101430 — Technical Specifications

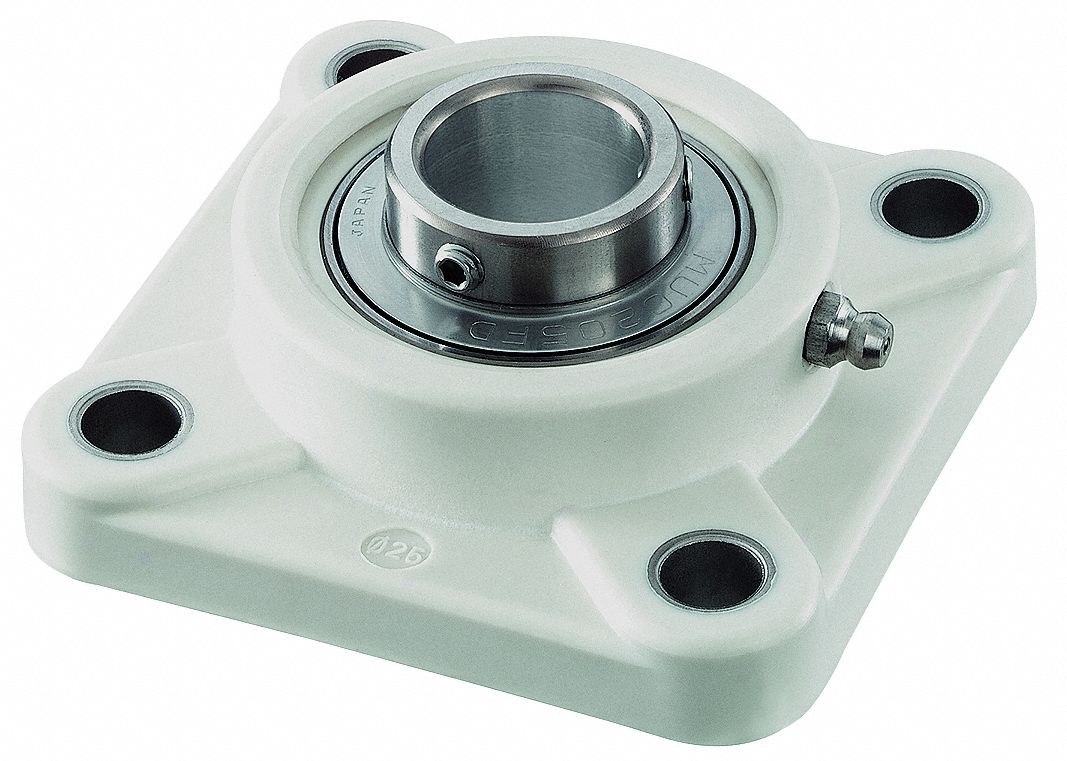

The NTN 4 Bolt Flange Bearing is a food-grade flange-mount radial ball bearing with a 30 mm cylindrical bore, polymer housing, and set screw locking. It features FDA/USDA-H1 solid grease lubrication, M10 mounting bolts, and metric dimensions (107 mm length, 41.4 mm width). This NTN SUCFPL206 unit is designed without an included bearing cap for industrial equipment applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 107 mm |
| Wd | 41.4 mm |
| Bore | 30 mm |
| Type | Polymer, Set Screws |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | FDA/USDA-H1 Solid Grease |
| Mounting Bolt Size | M10 |
| Included Bearing Cap | None |
| System Of Measurement | Metric |
| Manufacturer Part Number | SUCFPL206 |
