Ntn 3G-OTH-105956 — Technical Specifications

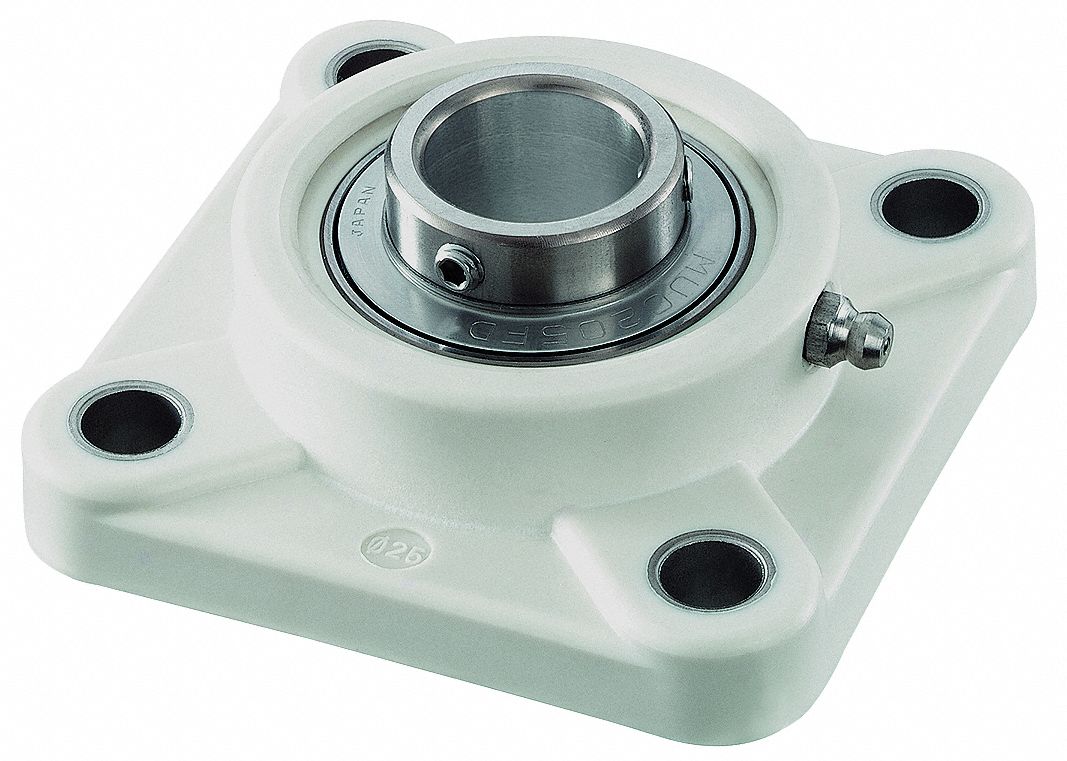

The NTN 4 Bolt Flange Bearing is a food-grade flange-mount radial ball bearing with a 25 mm cylindrical bore, polymer housing, and set screw locking. It features FDA/USDA-H1 solid grease lubrication, M10 mounting bolts, and metric dimensions (95 mm length, 36.8 mm width). This NTN bearing (MPN SUCFPL205) is designed for industrial applications requiring sanitary lubrication.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 95 mm |
| Wd | 36.8 mm |
| Bore | 25 mm |
| Type | Polymer, Set Screws |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | FDA/USDA-H1 Solid Grease |
| Mounting Bolt Size | M10 |
| Included Bearing Cap | None |
| System Of Measurement | Metric |
| Manufacturer Part Number | SUCFPL205 |
