Ntn 3G-OTH-106764 — Technical Specifications

Name: Ntn 3G-OTH-106764 NTN Pillow Block Bearing: 2 1/4 in Bore, Cast Iron, Eccentric Collar, 2 11/16 in Shaft Ht, 2,500 RPM (MPN UELPL-2.1/4M). Key specifications — Brand: NTN; Maximum Speed: 2,500 RPM; Mounting Bolt Size: 5/8 in; System of Measurement: Inch.
Brand: Ntn

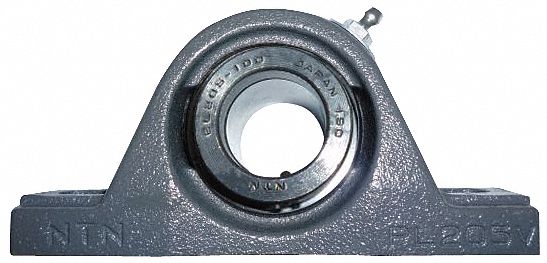

The NTN UELPL-2.1/4M is a general purpose pillow block ball bearing with a 2 1/4 in bore, featuring a cast iron housing and eccentric collar. It has a maximum speed of 2,500 RPM, a shaft height of 2 11/16 in, and a mounting bolt size of 5/8 in, in the inch system of measurement.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Cast Iron, Eccentric Collar, 2,500 RPM
Brand	NTN
Shaft Ht	2 11/16 in
Maximum Speed	2,500 RPM
Mounting Bolt Size	5/8 in
System Of Measurement	Inch
Manufacturer Part Number	UELPL-2.1/4M
