Ntn 3G-OTH-103716 — Technical Specifications

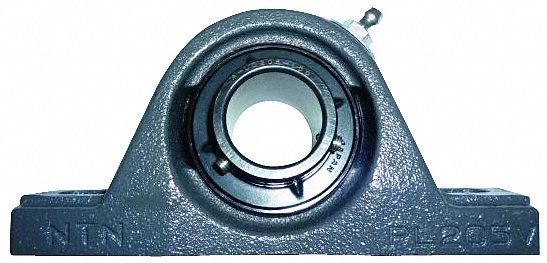

Name: Ntn 3G-OTH-103716 NTN Pillow Block Bearing: 2 7/16 in Bore, Cast Iron, Set Screws, 2 63/64 in Shaft Ht, 250°F Max Temp (MPN UCPX-2.7/16M). Key specifications — Brand: NTN; Mounting Bolt Size: 3/4 in; System of Measurement: Inch.
Brand: Ntn

The NTN UCPX-2.7/16M is a medium duty pillow block ball bearing with a 2 7/16 in bore, designed for inch-system applications. It features a cast iron housing, set screw locking, a shaft height of 2 63/64 in, and a maximum operating temperature of 250°F. The mounting bolt size is 3/4 in.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Cast Iron, Set Screws
Brand	NTN
Max Temp	250°F
Shaft Ht	2 63/64 in
Mounting Bolt Size	3/4 in
System Of Measurement	Inch
Manufacturer Part Number	UCPX-2.7/16M
