Ntn 3G-OTH-113575 — Technical Specifications

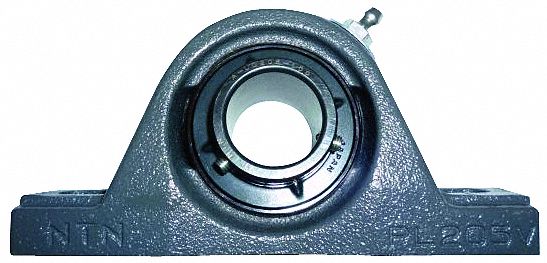

Name: Ntn 3G-OTH-113575 NTN Pillow Block Bearing: 1 1/8 in Bore, Cast Iron, Set Screws, 1 9/16 in Shaft Ht, 5,900 RPM (MPN UCPL-1.1/8M). Key specifications — Brand: NTN; Maximum Speed: 5,900 RPM; Mounting Bolt Size: 1/2 in; System of Measurement: Inch.
Brand: Ntn

The NTN UCPL-1.1/8M is a general purpose pillow block ball bearing with a 1 1/8 in bore, constructed from cast iron and featuring set screw locking. It has a maximum speed of 5,900 RPM, a shaft height of 1 9/16 in, and a mounting bolt size of 1/2 in, all in the inch system of measurement.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Cast Iron, Set Screws, 5,900 RPM
Brand	NTN
Shaft Ht	1 9/16 in
Maximum Speed	5,900 RPM
Mounting Bolt Size	1/2 in
System Of Measurement	Inch
Manufacturer Part Number	UCPL-1.1/8M
