Ntn 3G-OTH-110958 — Technical Specifications

Name: Ntn 3G-OTH-110958 NTN Pillow Block Bearing: 1 1/4 in Bore, Cast Iron, Set Screws, 1 9/16 in Shaft Ht, 5,900 RPM (MPN UCPL-1.1/4SM). Key specifications — Brand: NTN; Maximum Speed: 5,900 RPM; Mounting Bolt Size: 1/2 in; System of Measurement: Inch.
Brand: Ntn

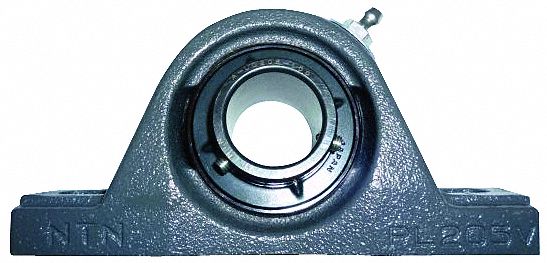

The NTN UCPL-1.1/4SM is a general purpose pillow block ball bearing with a 1 1/4 in bore, designed for inch-system applications. It features a cast iron housing, set screw locking, a 1 9/16 in shaft height, and a maximum speed of 5,900 RPM. The mounting bolt size is 1/2 in.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Cast Iron, Set Screws, 5,900 RPM
Brand	NTN
Shaft Ht	1 9/16 in
Maximum Speed	5,900 RPM
Mounting Bolt Size	1/2 in
System Of Measurement	Inch
Manufacturer Part Number	UCPL-1.1/4SM
