Ntn 3G-OTH-115410 — Technical Specifications

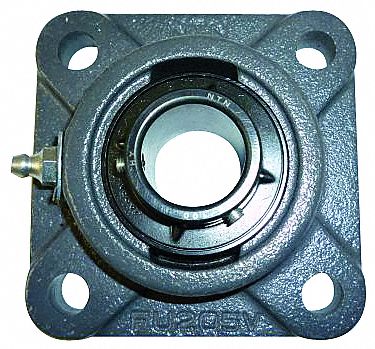

The NTN 4 Bolt Flange Bearing is a general purpose flange-mount ball bearing with a 3/4 in cylindrical bore. It features a cast iron housing, set screw locking, and dimensions of 3 3/8 in length and height. The bearing is lubricated with NLGI #3 equivalent grease and uses a 3/8 in mounting bolt size, with the system of measurement in inches.
Technical Specifications
| Parameter | Value |
|---|---|
| Ht | 3 3/8 in |
| Lg | 3 3/8 in |
| Bore | 3/4 in |
| Type | Cast Iron, Set Screws |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | NLGI #3 Equivalent |
| Mounting Bolt Size | 3/8 in |
| System Of Measurement | Inch |
| Manufacturer Part Number | UCFU-3/4M |
