Ntn 3G-OTH-120382 — Technical Specifications

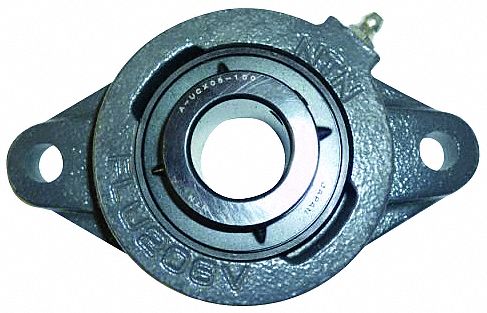

The NTN 2 Bolt Flange Bearing is a general purpose flange-mount ball bearing with a 1 11/16 in cylindrical bore. This inch-system unit features a cast iron housing, set screw locking, and a 7 15/32 in length. It is lubricated with NLGI #3 equivalent grease and uses a 1/2 in mounting bolt.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 7 15/32 in |
| Bore | 1 11/16 in |
| Type | Cast Iron, Set Screws |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | NLGI #3 Equivalent |
| Mounting Bolt Size | 1/2 in |
| System Of Measurement | Inch |
| Manufacturer Part Number | UCFLU-1.11/16M |
