Ntn 3G-OTH-111695 — Technical Specifications

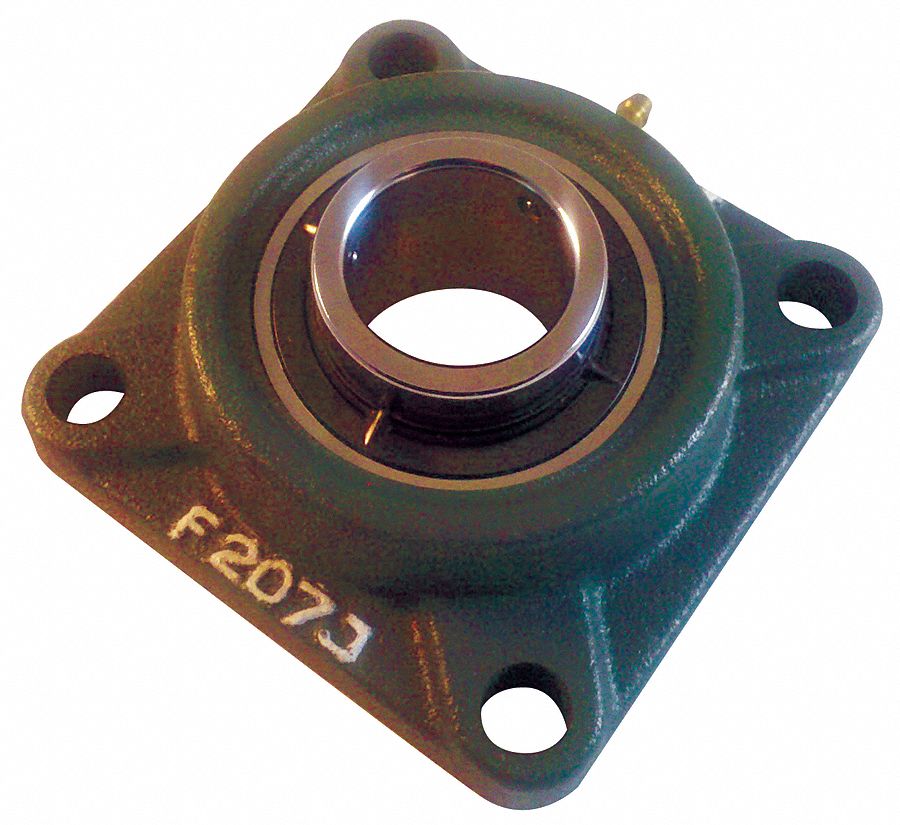

The NTN 4 Bolt Flange Bearing is a general purpose flange-mount ball bearing with a 1 15/16 in cylindrical bore and a cast iron housing. It features set screws for shaft locking and uses NLGI #3 equivalent lubricant. The mounting bolt size is 5/8 in, and the system of measurement is inch.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 5 5/8 in |
| Bore | 1 15/16 in |
| Type | Cast Iron, Set Screws, Square |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | NLGI #3 Equivalent |
| Mounting Bolt Size | 5/8 in |
| System Of Measurement | Inch |
| Manufacturer Part Number | UCF210-115D1 |
