Ntn 3G-OTH-116756 — Technical Specifications

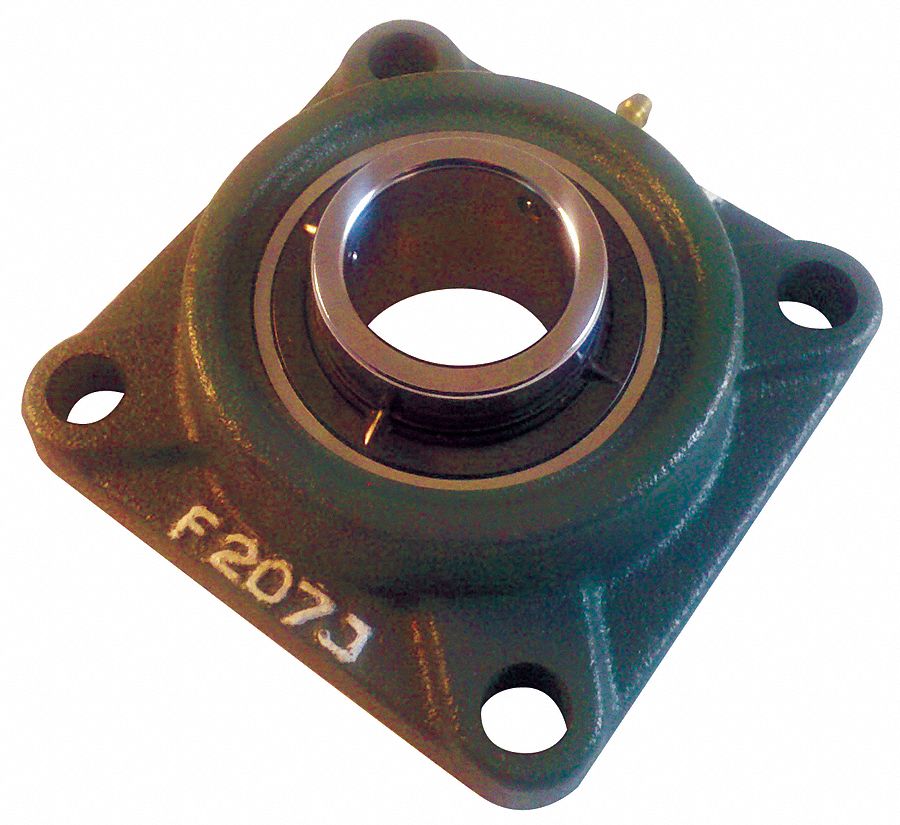

The NTN 4 Bolt Flange Bearing is a general purpose flange-mount ball bearing with a 7/8 in cylindrical bore and a cast iron housing. It features set screws for shaft locking and uses NLGI #3 equivalent lubricant. The unit has a 3 3/4 in length and height, with a 7/16 in mounting bolt size, and is measured in inches.
Technical Specifications
| Parameter | Value |
|---|---|
| Ht | 3 3/4 in |
| Lg | 3 3/4 in |
| Bore | 7/8 in |
| Type | Cast Iron, Set Screws |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | NLGI #3 Equivalent |
| Mounting Bolt Size | 7/16 in |
| System Of Measurement | Inch |
| Manufacturer Part Number | UCF205-014D1 |
