Ntn 3G-OTH-101151 — Technical Specifications

Name: Ntn 3G-OTH-101151 NTN Radial Ball Bearing: 6224, Open, 120 mm Bore, 215 mm OD, 40 mm Wd, Alloy Steel Ring (MPN 7MC3-6224C3). Key specifications — System of Measurement: Metric; Bearing Industry Number: 6224.
Brand: Ntn

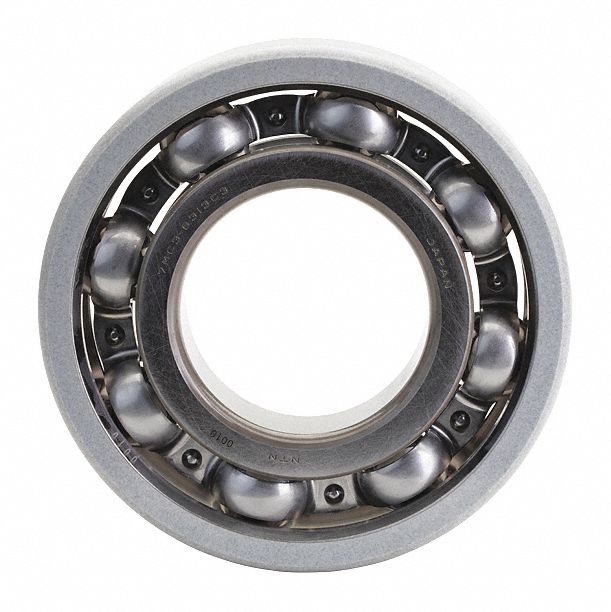

The NTN 6224 is a metric ceramic insulated radial ball bearing, identified by industry number 6224 and manufacturer part number 7MC3-6224C3. It features an open design with a 120 mm bore, 215 mm outer diameter, and 40 mm width, constructed with an alloy steel ring.

View Product & Quote

Technical Specifications

Parameter	Value
OD	215 mm
Wd	40 mm
Bore	120 mm
Type	Open, Alloy Steel Ring
System Of Measurement	Metric
Bearing Industry Number	6224
Manufacturer Part Number	7MC3-6224C3
