Ntn 3G-OTH-100826 — Technical Specifications

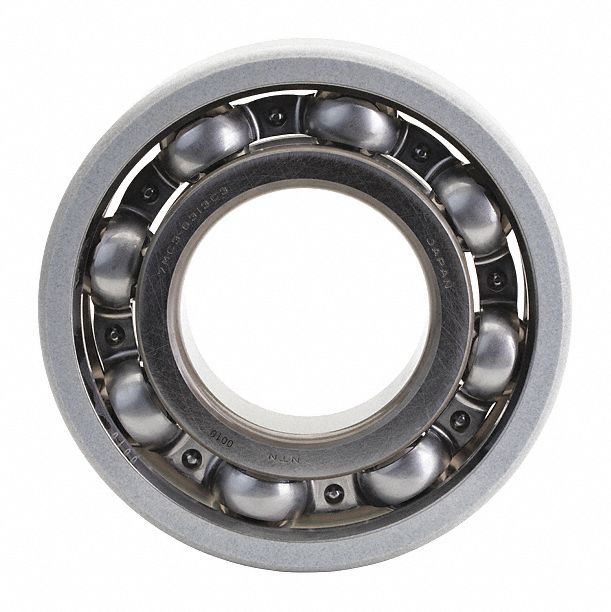

The NTN Radial Ball Bearing: 6218 is a ceramic insulated radial ball bearing with a metric system of measurement. It features an open design, a 90 mm bore, a 160 mm outer diameter, and a 30 mm width, constructed with an alloy steel ring. The bearing is identified by the industry number 6218 and manufacturer part number 7MC3-6218C3.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 160 mm |
| Wd | 30 mm |
| Bore | 90 mm |
| Type | Open, Alloy Steel Ring |
| System Of Measurement | Metric |
| Bearing Industry Number | 6218 |
| Manufacturer Part Number | 7MC3-6218C3 |
