Ntn 3G-OTH-100793 — Technical Specifications

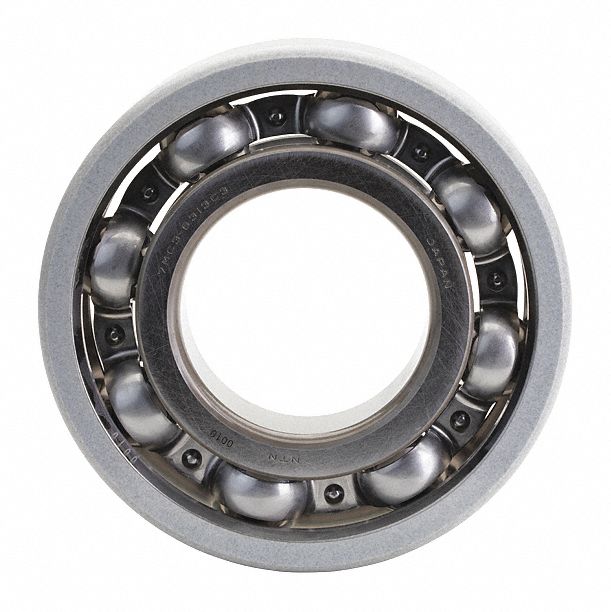

The NTN Radial Ball Bearing: 6217 is a ceramic insulated radial ball bearing with a metric system of measurement. It features an open design, an 85 mm bore, a 150 mm outer diameter, and a 28 mm width, constructed with an alloy steel ring. The bearing industry number is 6217, and the manufacturer part number is 7MC3-6217C3.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 150 mm |
| Wd | 28 mm |
| Bore | 85 mm |
| Type | Open, Alloy Steel Ring |
| System Of Measurement | Metric |
| Bearing Industry Number | 6217 |
| Manufacturer Part Number | 7MC3-6217C3 |
