Ntn 3G-OTH-102445 — Technical Specifications

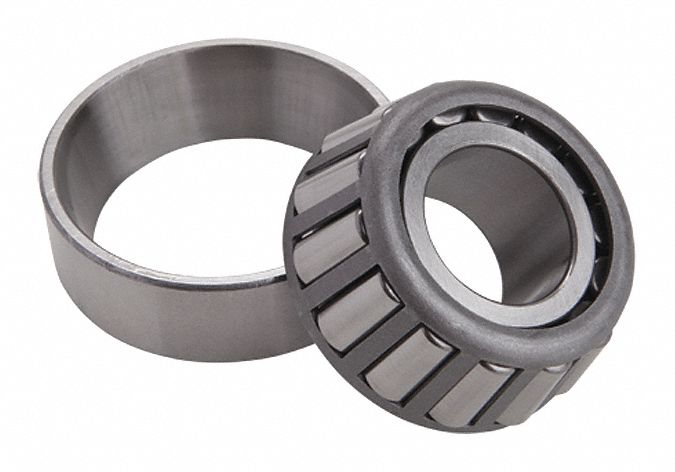

The NTN Tapered Roller Bearing Assembly, model 33206, is a metric tapered roller bearing assembly with a 30 mm bore, 62 mm OD, 25 mm cone width, and 19.5 mm cup width. It features a pressed steel cage and carbon steel rings, and is not prelubricated. This bearing assembly is identified by the bearing industry number 33206 and manufacturer part number 33206.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 62 mm |
| Bore | 30 mm |
| Brand | NTN |
| Cup Wd | 19.5 mm |
| Cone Wd | 25 mm |
| Cage Material | Pressed Steel |
| Ring Material | Carbon Steel |
| Lubricant Material | Not Prelubricated |
| System Of Measurement | Metric |
| Bearing Industry Number | 33206 |
| Manufacturer Part Number | 33206 |
