Ntn 3G-OTH-101833 — Technical Specifications

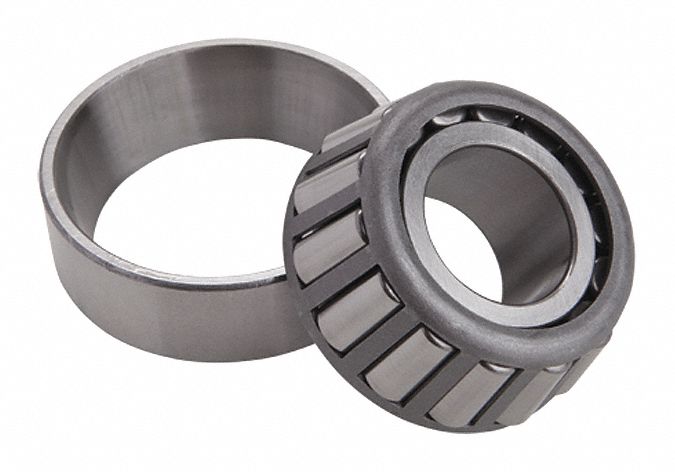

The NTN Tapered Roller Bearing Assembly 32004X is a metric tapered roller bearing assembly with a 20 mm bore, 42 mm OD, 15 mm cone width, and 12 mm cup width. It features a pressed steel cage and carbon steel rings, and is not prelubricated.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 42 mm |
| Bore | 20 mm |
| Brand | NTN |
| Cup Wd | 12 mm |
| Cone Wd | 15 mm |
| Cage Material | Pressed Steel |
| Ring Material | Carbon Steel |
| Lubricant Material | Not Prelubricated |
| System Of Measurement | Metric |
| Bearing Industry Number | 32004X |
| Manufacturer Part Number | 32004X |
