Ntn 3G-OTH-103074 — Technical Specifications

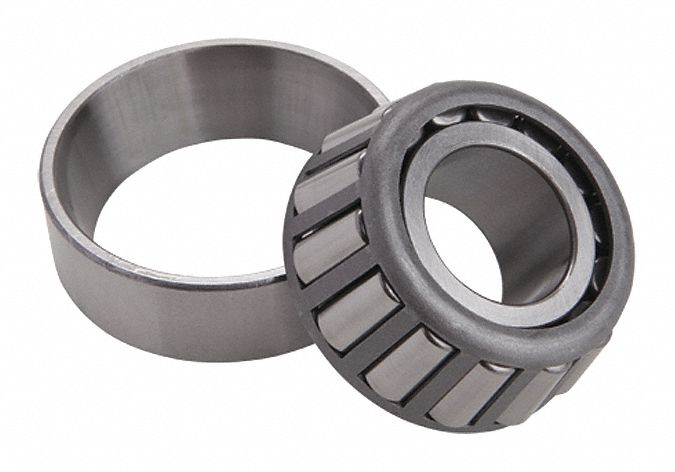

The NTN Tapered Roller Bearing Assembly, model 30208, is a metric tapered roller bearing assembly with a 40 mm bore, 80 mm OD, 18 mm cone width, and 16 mm cup width. It features a pressed steel cage and carbon steel rings, and is not prelubricated. The bearing industry number and manufacturer part number are both 30208.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 80 mm |
| Bore | 40 mm |
| Type | 30208 |
| Brand | NTN |
| Cup Wd | 16 mm |
| Cone Wd | 18 mm |
| Cage Material | Pressed Steel |
| Ring Material | Carbon Steel |
| Lubricant Material | Not Prelubricated |
| System Of Measurement | Metric |
| Bearing Industry Number | 30208 |
| Manufacturer Part Number | 30208 |
