Ntn 3G-OTH-102875 — Technical Specifications

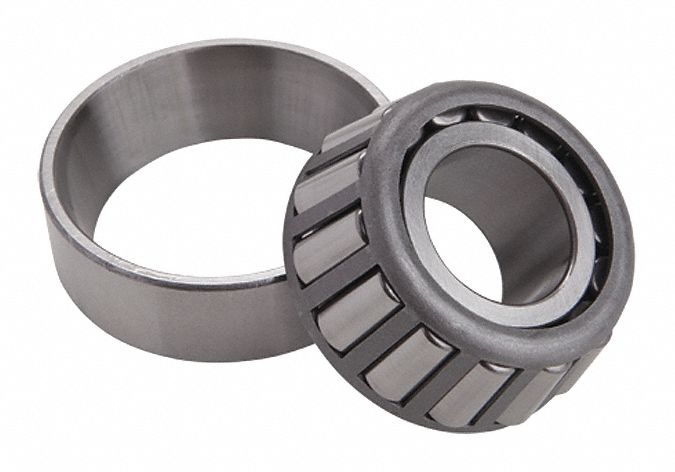

The NTN Tapered Roller Bearing Assembly, model 30207, is a metric tapered roller bearing assembly with a 35 mm bore, 72 mm OD, 17 mm cone width, and 15 mm cup width. It features a pressed steel cage and carbon steel rings, and is not prelubricated. This bearing assembly is identified by the bearing industry number 30207 and manufacturer part number 30207.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 72 mm |
| Bore | 35 mm |
| Type | 30207 |
| Brand | NTN |
| Cup Wd | 15 mm |
| Cone Wd | 17 mm |
| Cage Material | Pressed Steel |
| Ring Material | Carbon Steel |
| Lubricant Material | Not Prelubricated |
| System Of Measurement | Metric |
| Bearing Industry Number | 30207 |
| Manufacturer Part Number | 30207 |
