Ntn 3G-OTH-102050 — Technical Specifications

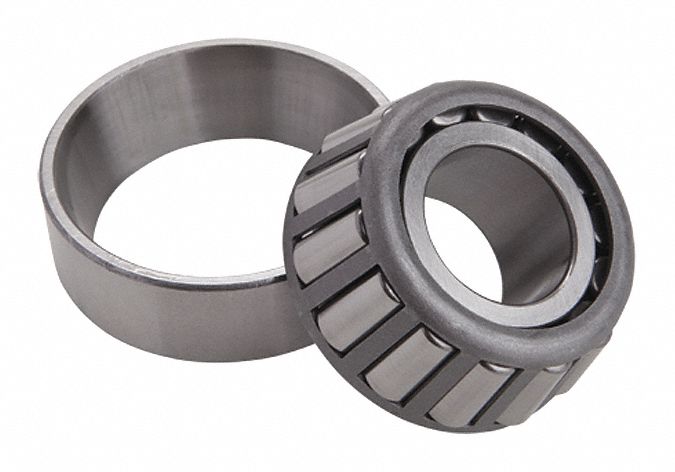

The NTN Tapered Roller Bearing Assembly, model 30205, is a metric tapered roller bearing assembly with a 25 mm bore, 52 mm OD, 15 mm cone width, and 13 mm cup width. It features a pressed steel cage and carbon steel rings, and is not prelubricated. The bearing industry number and manufacturer part number are both 30205.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 52 mm |
| Bore | 25 mm |
| Type | 30205 |
| Brand | NTN |
| Cup Wd | 13 mm |
| Cone Wd | 15 mm |
| Cage Material | Pressed Steel |
| Ring Material | Carbon Steel |
| Lubricant Material | Not Prelubricated |
| System Of Measurement | Metric |
| Bearing Industry Number | 30205 |
| Manufacturer Part Number | 30205 |
