Ntn 3G-OTH-101631 — Technical Specifications

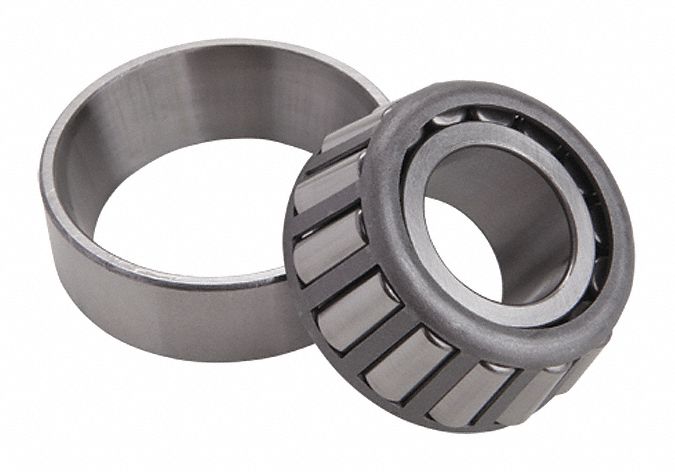

The NTN Tapered Roller Bearing Assembly, model 30202, is a metric tapered roller bearing assembly with a 15 mm bore, 35 mm OD, 12 mm cone width, and 10 mm cup width. It features a pressed steel cage and carbon steel rings, and is not prelubricated. This bearing assembly is identified by bearing industry number 30202 and manufacturer part number 30202.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 35 mm |
| Bore | 15 mm |
| Type | 30202 |
| Brand | NTN |
| Cup Wd | 10 mm |
| Cone Wd | 12 mm |
| Cage Material | Pressed Steel |
| Ring Material | Carbon Steel |
| Lubricant Material | Not Prelubricated |
| System Of Measurement | Metric |
| Bearing Industry Number | 30202 |
| Manufacturer Part Number | 30202 |
