Ntn 3G-OTH-112789 — Technical Specifications

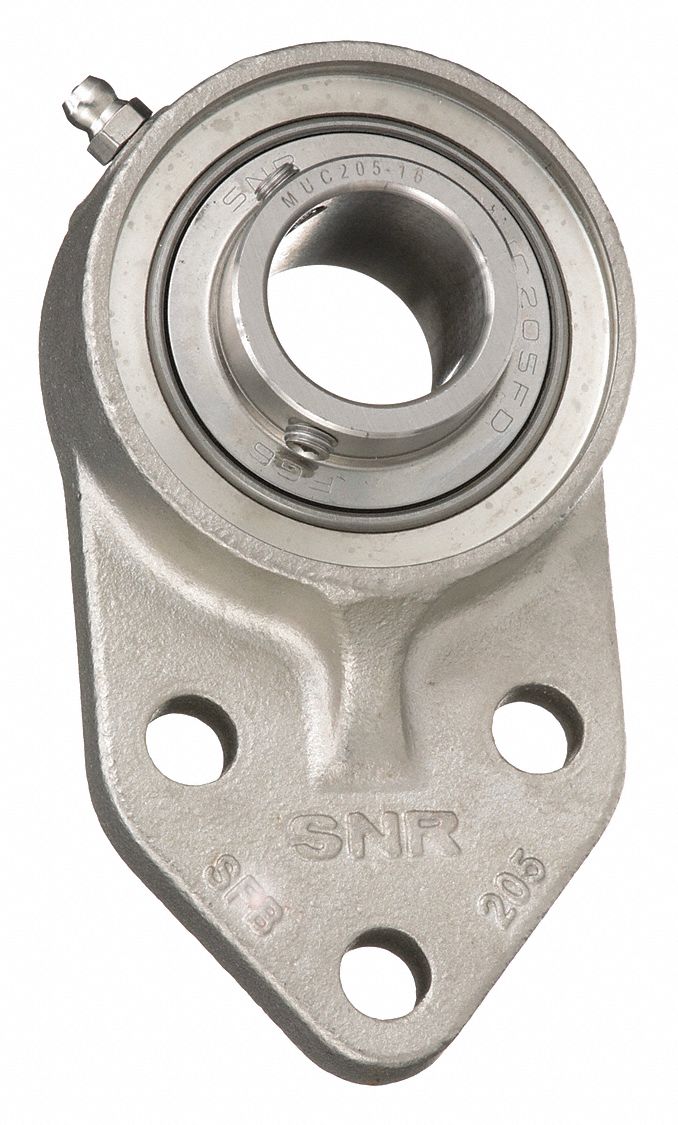

The NTN 3 Bolt Flange Bearing is a food-grade flange-mount radial ball bearing with a 3/4 in cylindrical bore and an open cap. It features set screws, measures 2 3/8 in length by 1 7/16 in width, and is constructed from 440C stainless steel. The bearing is lubricated with FDA/USDA-H1 solid grease and uses M8 mounting bolts.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 2 3/8 in |
| Wd | 1 7/16 in |
| Bore | 3/4 in |
| Type | SS, Set Screws, 440C |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | FDA/USDA-H1 Solid Grease |
| Mounting Bolt Size | M8 |
| Included Bearing Cap | Open Cap |
| System Of Measurement | Inch |
| Manufacturer Part Number | SUCFB204-12C0FG1 |
