Ntn 3G-OTH-100246 — Technical Specifications

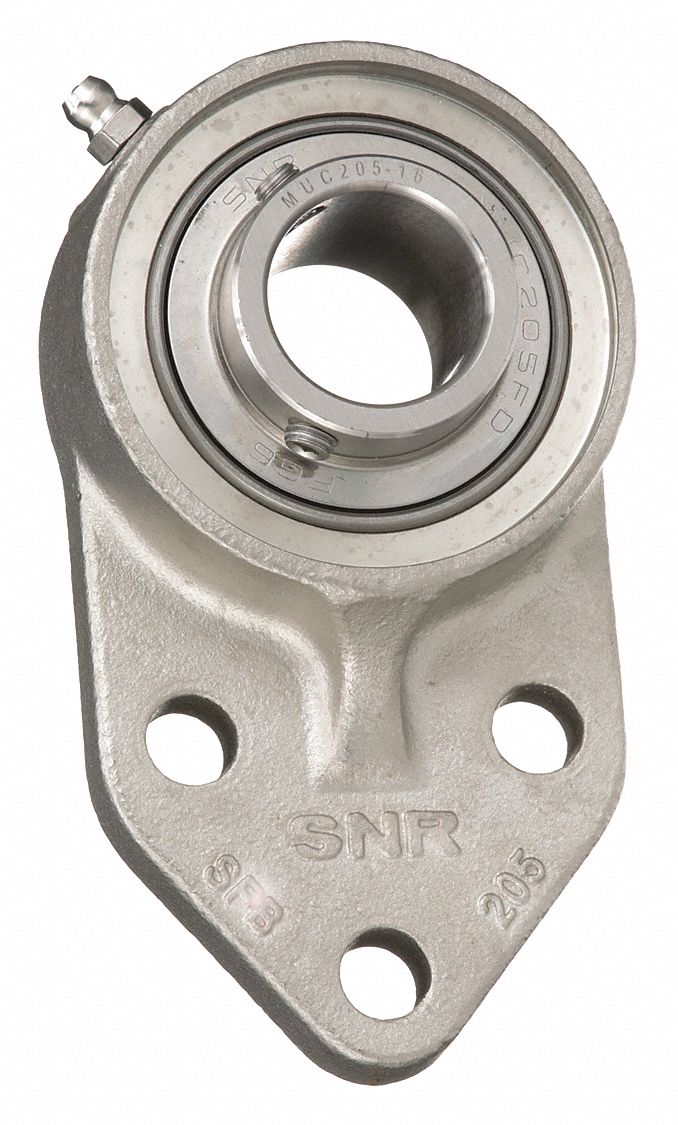

The NTN 3 Bolt Flange Bearing is a food-grade flange-mount radial ball bearing with a 20 mm cylindrical bore, stainless steel construction, and set screws. It features FDA/USDA-H1 solid grease lubrication, M10 mounting bolts, and metric dimensions of 60.5 mm length and 33.3 mm width, with no included bearing cap.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 60.5 mm |
| Wd | 33.3 mm |
| Bore | 20 mm |
| Type | SS, Set Screws |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | FDA/USDA-H1 Solid Grease |
| Mounting Bolt Size | M10 |
| Included Bearing Cap | None |
| System Of Measurement | Metric |
| Manufacturer Part Number | SUCFB204 |
