Ntn 3G-OTH-99211 — Technical Specifications

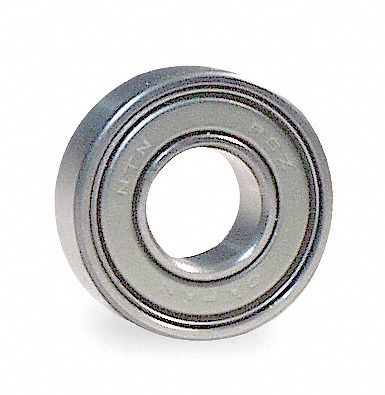

The NTN Radial Ball Bearing, model 63309, is a general purpose cartridge radial ball bearing with a metric system of measurement. It features a 45 mm bore, 100 mm outer diameter, and 39.7 mm width, constructed with alloy steel rings and double shields. The manufacturer part number is 63309ZZC3/L627.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 100 mm |
| Wd | 39.7 mm |
| Bore | 45 mm |
| Type | Dbl Shield, Alloy Steel Ring |
| System Of Measurement | Metric |
| Bearing Industry Number | 63309 |
| Manufacturer Part Number | 63309ZZC3/L627 |
