Ntn 3G-OTH-98312 — Technical Specifications

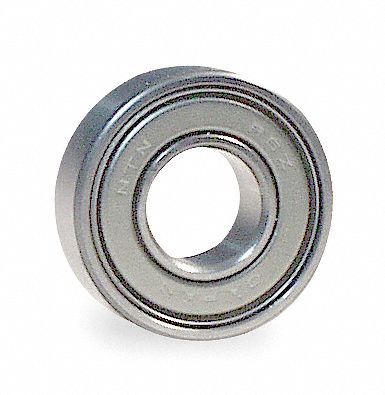

The NTN Radial Ball Bearing, model 63306, is a general purpose cartridge radial ball bearing from NTN. This metric bearing features a 30 mm bore, 72 mm outer diameter, and 30.2 mm width, with double contact seals (LLU) and a C3 internal clearance. The manufacturer part number is 63306LLUC3/L627.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 72 mm |
| Wd | 30.2 mm |
| Bore | 30 mm |
| Type | Dbl Sealed, Contact Seal |
| System Of Measurement | Metric |
| Bearing Industry Number | 63306 |
| Manufacturer Part Number | 63306LLUC3/L627 |
