Ntn 3G-OTH-111558 — Technical Specifications

Name: Ntn 3G-OTH-111558 NTN 3 Bolt Flange Bearing: Radial Ball, 1 7/16 in Bore, Polymer, Set Screws, 3 1/2 in Lg (MPN ZUCFBL207-23). Key specifications — Bore Type: Cylindrical; Brand: NTN; Lubricant Material: FDA/USDA-H1 Solid Grease; Mounting Bolt Size: 1/2 in; System of Measurement: Inch; Included Bearing Cap: None.
Brand: Ntn

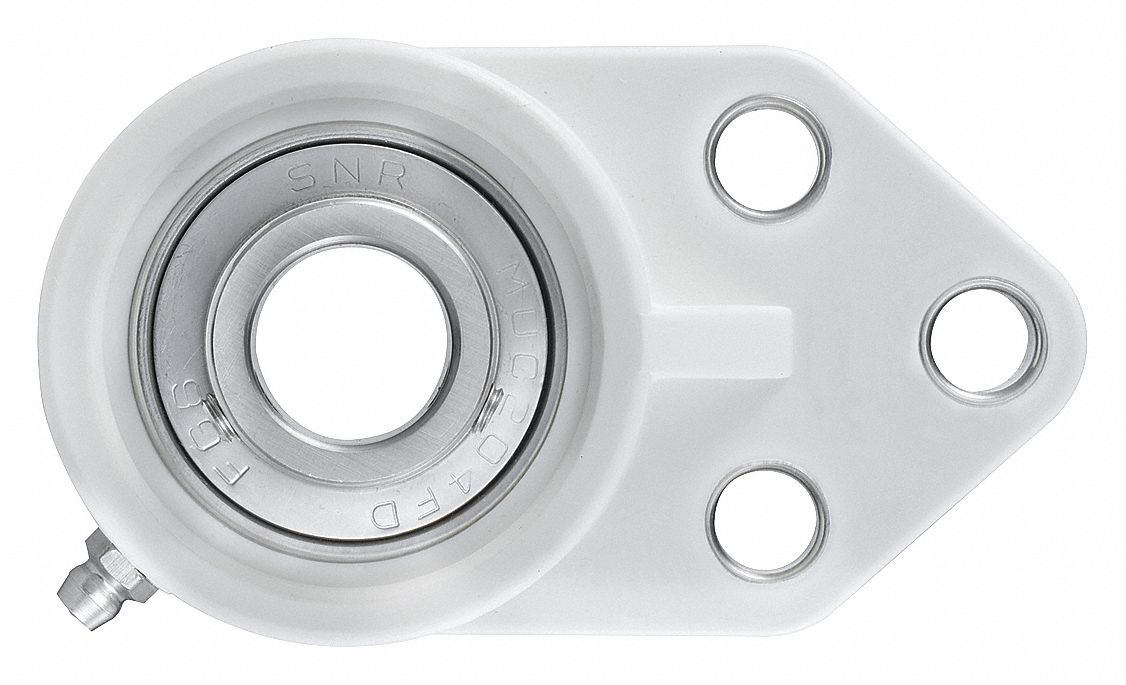

The NTN 3 Bolt Flange Bearing is a food-grade flange-mount radial ball bearing with a 1 7/16 in cylindrical bore, designed for inch-system applications. It features a polymer housing, set screws for shaft locking, and is lubricated with FDA/USDA-H1 solid grease. The bearing uses 1/2 in mounting bolts and has a manufacturer part number ZUCFBL207-23.

View Product & Quote

Technical Specifications

Parameter	Value
Lg	3 1/2 in
Bore	1 7/16 in
Type	Polymer, Set Screws
Brand	NTN
Bore Type	Cylindrical
Lubricant Material	FDA/USDA-H1 Solid Grease
Mounting Bolt Size	1/2 in
Included Bearing Cap	None
System Of Measurement	Inch
Manufacturer Part Number	ZUCFBL207-23
