Ntn 3G-OTH-105915 — Technical Specifications

Name: Ntn 3G-OTH-105915 NTN 4 Bolt Flange Bearing: Radial Ball, 1 in Bore, Polymer, Set Screws, 3 3/4 in Lg, 1 7/16 in Wd (MPN ZUCFPL205-16). Key specifications — Bore Type: Cylindrical; Brand: NTN; Lubricant Material: FDA/USDA-H1 Solid Grease; Mounting Bolt Size: 7/16 in; System of Measurement: Inch; Included Bearing Cap: None.
Brand: Ntn

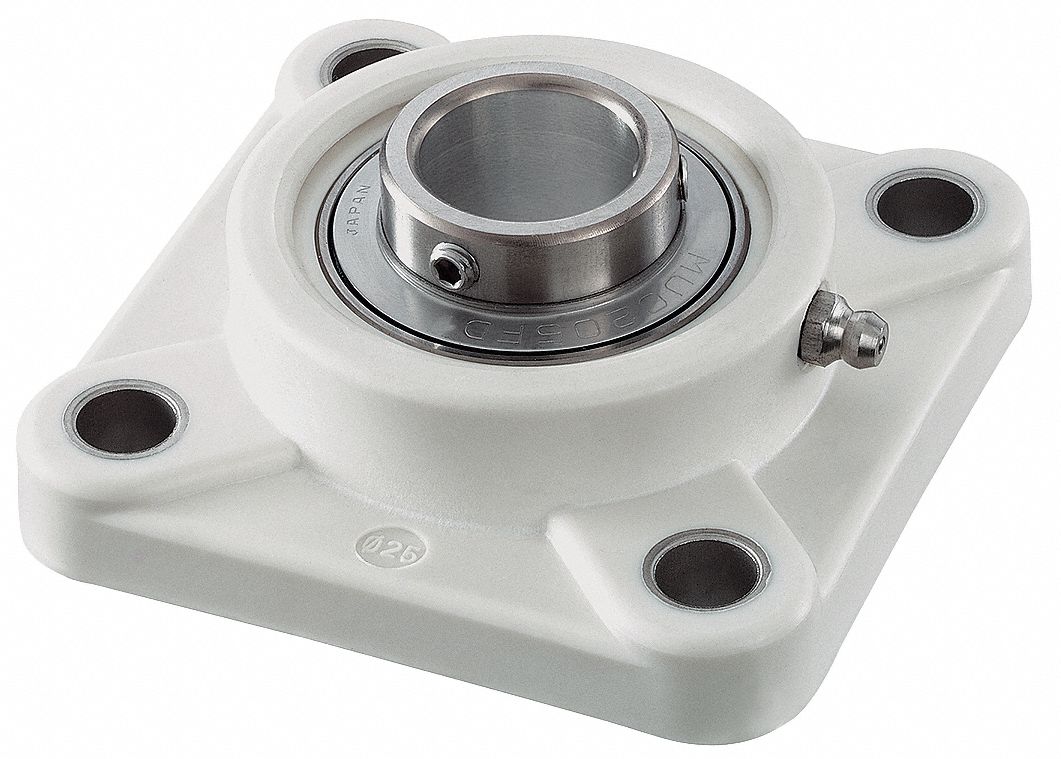

The NTN 4 Bolt Flange Bearing is a food-grade flange-mount ball bearing with a 1 in cylindrical bore, designed for inch-system mounting with 7/16 in bolts. It features FDA/USDA-H1 solid grease lubrication and a polymer housing with set screws, measuring 3 3/4 in length and 1 7/16 in width (MPN ZUCFPL205-16). No bearing cap is included.

View Product & Quote

Technical Specifications

Parameter	Value
Lg	3 3/4 in
Wd	1 7/16 in
Bore	1 in
Type	Polymer, Set Screws
Brand	NTN
Bore Type	Cylindrical
Lubricant Material	FDA/USDA-H1 Solid Grease
Mounting Bolt Size	7/16 in
Included Bearing Cap	None
System Of Measurement	Inch
Manufacturer Part Number	ZUCFPL205-16
