Ntn 3G-OTH-100176 — Technical Specifications

Name: Ntn 3G-OTH-100176 NTN 2 Bolt Flange Bearing: Radial Ball, 3/4 in Bore, Polymer, Set Screws, 5 1/8 in Lg, 1 11/64 in Wd (MPN ZUCNFL204-12). Key specifications — Bore Type: Cylindrical; Brand: NTN; Lubricant Material: FDA/USDA-H1 Solid Grease; Mounting Bolt Size: 7/16 in; System of Measurement: Inch; Included Bearing Cap: None.
Brand: Ntn

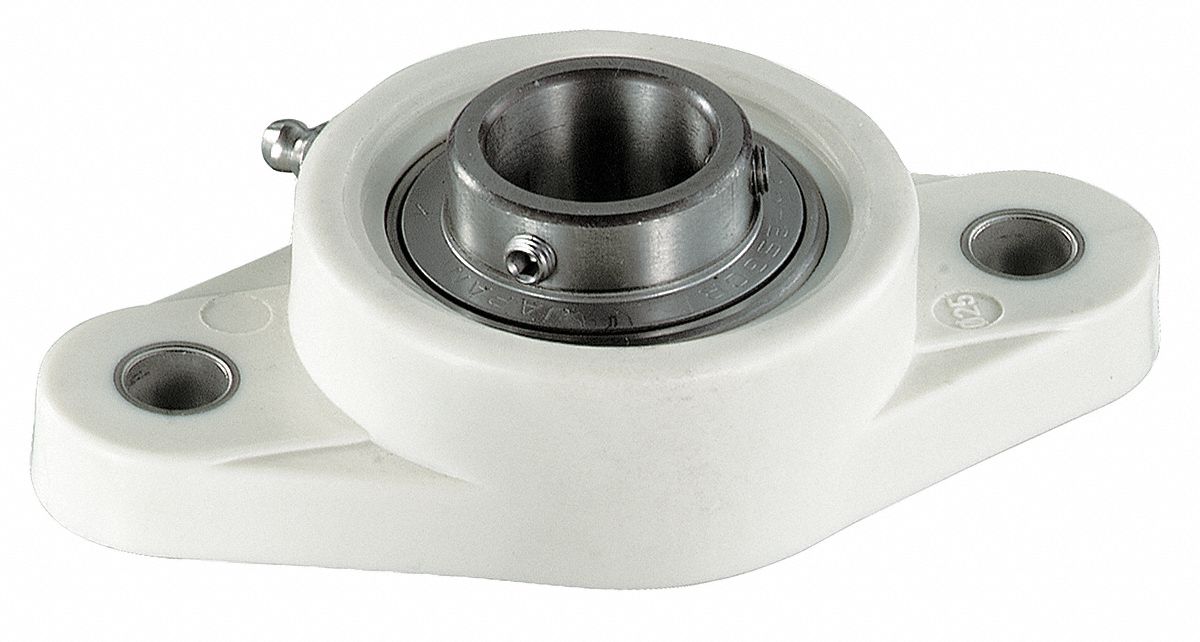

The NTN 2 Bolt Flange Bearing is a food-grade flange-mount radial ball bearing with a 3/4 in cylindrical bore, a polymer housing, and set screws. It features FDA/USDA-H1 solid grease lubrication, a 7/16 in mounting bolt size, and measures 5 1/8 in length by 1 11/64 in width (MPN ZUCNFL204-12). This inch-system bearing does not include a bearing cap.

View Product & Quote

Technical Specifications

Parameter	Value
Lg	5 1/8 in
Wd	1 11/64 in
Bore	3/4 in
Type	Polymer, Set Screws
Brand	NTN
Bore Type	Cylindrical
Lubricant Material	FDA/USDA-H1 Solid Grease
Mounting Bolt Size	7/16 in
Included Bearing Cap	None
System Of Measurement	Inch
Manufacturer Part Number	ZUCNFL204-12
