Ntn 3G-OTH-118276 — Technical Specifications

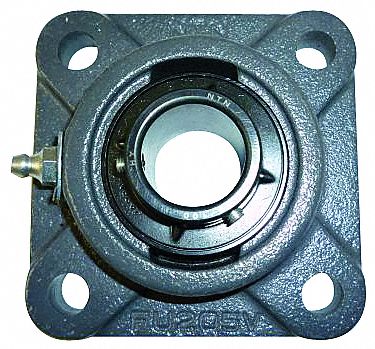

The NTN 4 Bolt Flange Bearing is a general purpose flange-mount ball bearing with a 25 mm cylindrical bore, cast iron housing, and set screw locking. This metric unit has a 96 mm length, 38.9 mm width, and uses M10 mounting bolts. It is lubricated with NLGI #3 equivalent grease.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 96 mm |
| Wd | 38.9 mm |
| Bore | 25 mm |
| Type | Cast Iron, Set Screws |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | NLGI #3 Equivalent |
| Mounting Bolt Size | M10 |
| System Of Measurement | Metric |
| Manufacturer Part Number | UCFU-25 |
