Ntn 3G-OTH-103813 — Technical Specifications

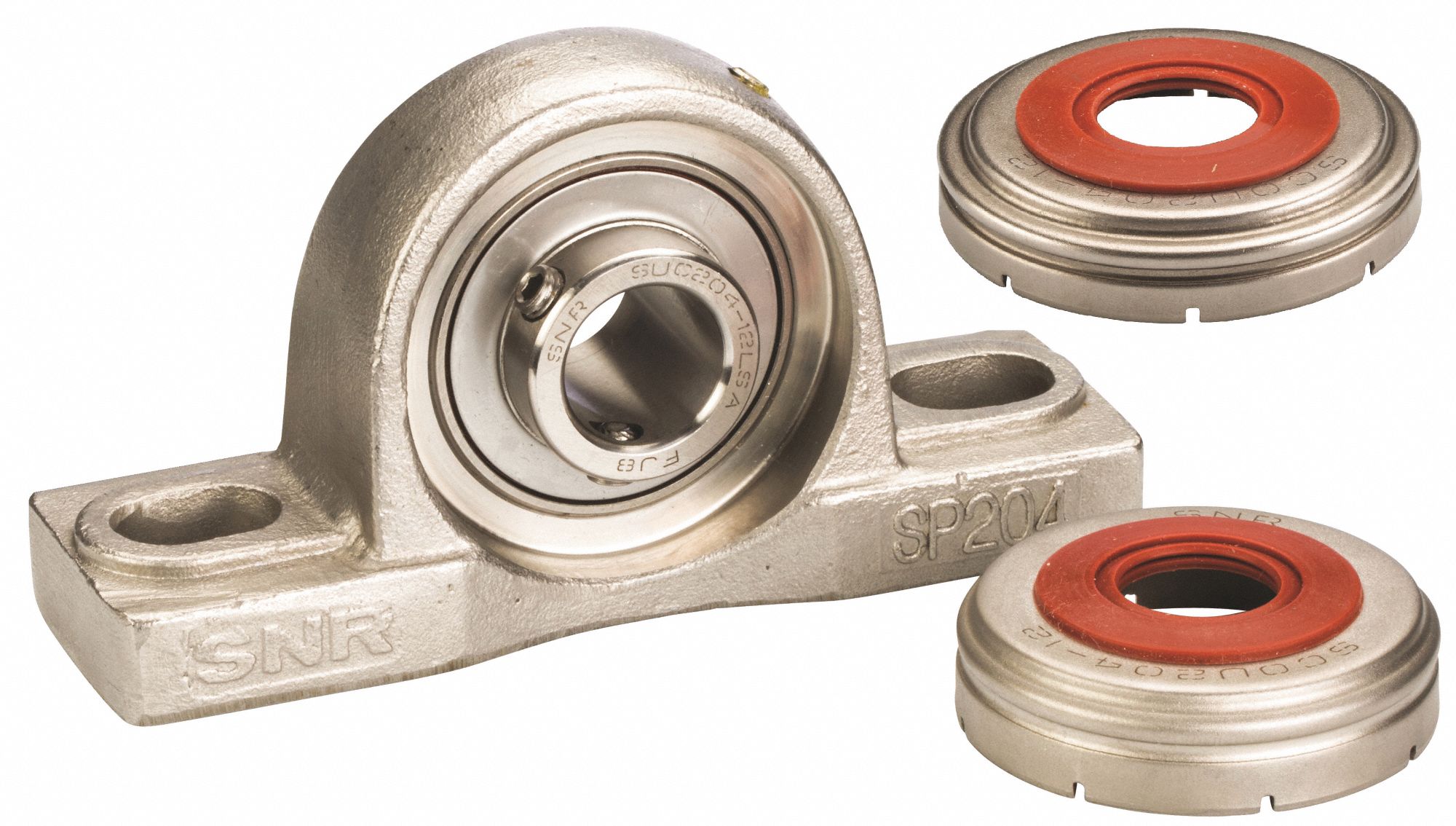

Name: Ntn 3G-OTH-103813 NTN Pillow Block Bearing: 2 7/16 in Bore, SS, Set Screws, 2 47/64 in Shaft Ht, 9.488 in Overall Lg (MPN SUCP212-39C0FG1). Key specifications — Brand: NTN; Maximum Speed: 1,900 RPM; Mounting Bolt Size: 5/8 in; Standards: FDA; System of Measurement: Inch.
Brand: Ntn

The NTN SUCP212-39C0FG1 is a food-grade pillow block ball bearing with a 2 7/16 in bore, designed to meet FDA standards. It features a stainless steel construction with set screws, a 2 47/64 in shaft height, and a 9.488 in overall length. This inch-system bearing has a maximum speed of 1,900 RPM and requires a 5/8 in mounting bolt size.

View Product & Quote

Technical Specifications

Parameter	Value
Type	SS, Set Screws
Brand	NTN
Shaft Ht	2 47/64 in
Standards	FDA
Overall Lg	9.488 in
Maximum Speed	1,900 RPM
Mounting Bolt Size	5/8 in
System Of Measurement	Inch
Manufacturer Part Number	SUCP212-39C0FG1
