Ntn 3G-OTH-109492 — Technical Specifications

Name: Ntn 3G-OTH-109492 NTN 4 Bolt Flange Bearing: Radial Ball, 2 3/16 in Bore, SS, Set Screws, 6 3/8 in Lg, 2 19/64 in Wd (MPN SUCF211-35CCFG1). Key specifications — Bore Type: Cylindrical; Brand: NTN; Lubricant Material: FDA/USDA-H1 Solid Grease; Mounting Bolt Size: 5/8 in; System of Measurement: Inch; Included Bearing Cap: Closed Cap.
Brand: Ntn

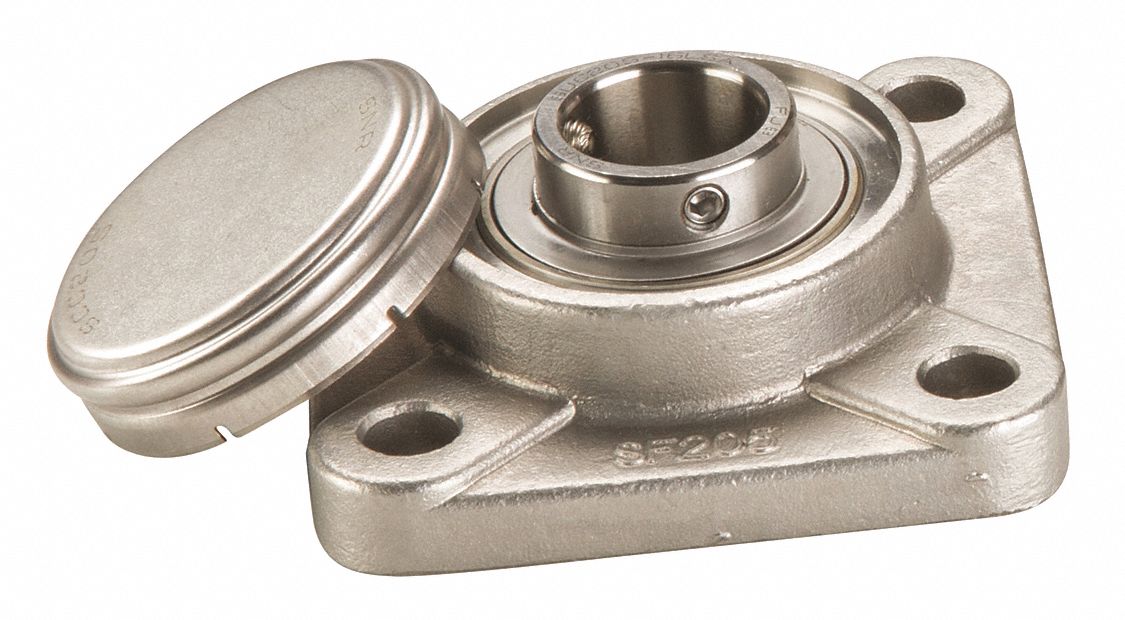

The NTN 4 Bolt Flange Bearing is a food-grade flange-mount radial ball bearing with a cylindrical bore of 2 3/16 in. It features an FDA/USDA-H1 solid grease lubricant, a closed cap, and set screws for secure mounting. This inch-system bearing uses 5/8 in mounting bolts and has dimensions of 6 3/8 in length and 2 19/64 in width.

View Product & Quote

Technical Specifications

Parameter	Value
Lg	6 3/8 in
Wd	2 19/64 in
Bore	2 3/16 in
Type	SS, Set Screws
Brand	NTN
Bore Type	Cylindrical
Lubricant Material	FDA/USDA-H1 Solid Grease
Mounting Bolt Size	5/8 in
Included Bearing Cap	Closed Cap
System Of Measurement	Inch
Manufacturer Part Number	SUCF211-35CCFG1
