Ntn 3G-OTH-113836 — Technical Specifications

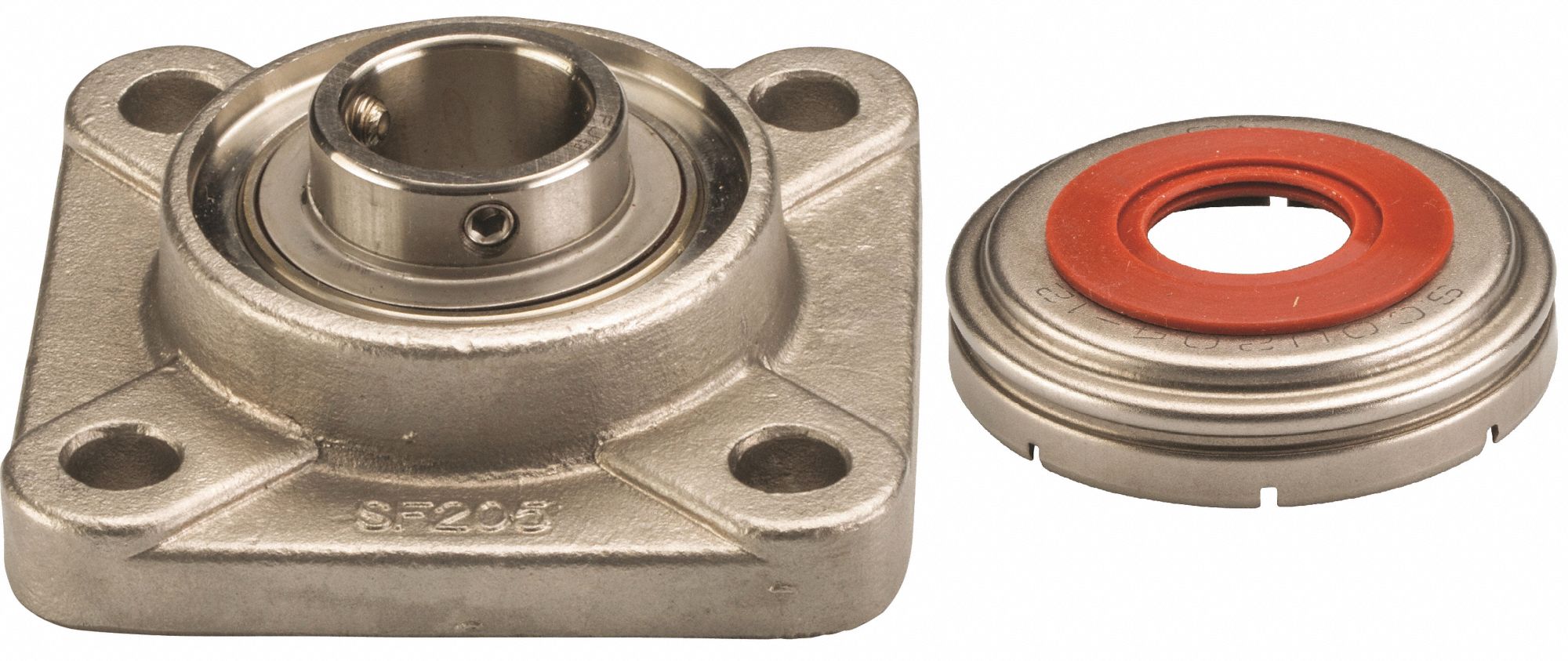

The NTN 4 Bolt Flange Bearing is a food-grade flange-mount radial ball bearing with a 1 3/4 in cylindrical bore and an open cap. It features set screws for mounting, a 5/8 in mounting bolt size, and is lubricated with FDA/USDA-H1 solid grease. This inch-system bearing has dimensions of 5 25/64 in length and 2 1/16 in width.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 5 25/64 in |
| Wd | 2 1/16 in |
| Bore | 1 3/4 in |
| Type | SS, Set Screws |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | FDA/USDA-H1 Solid Grease |
| Mounting Bolt Size | 5/8 in |
| Included Bearing Cap | Open Cap |
| System Of Measurement | Inch |
| Manufacturer Part Number | SUCF209-28C0FG1 |
