Ntn 3G-OTH-113795 — Technical Specifications

Name: Ntn 3G-OTH-113795 NTN 4 Bolt Flange Bearing: Radial Ball, 1 1/2 in Bore, SS, Set Screws, 5 1/8 in Lg, 2 1/64 in Wd (MPN SUCF208-24C0FG1). Key specifications — Bore Type: Cylindrical; Brand: NTN; Lubricant Material: FDA/USDA-H1 Solid Grease; Mounting Bolt Size: 5/8 in; System of Measurement: Inch; Included Bearing Cap: Open Cap.
Brand: Ntn

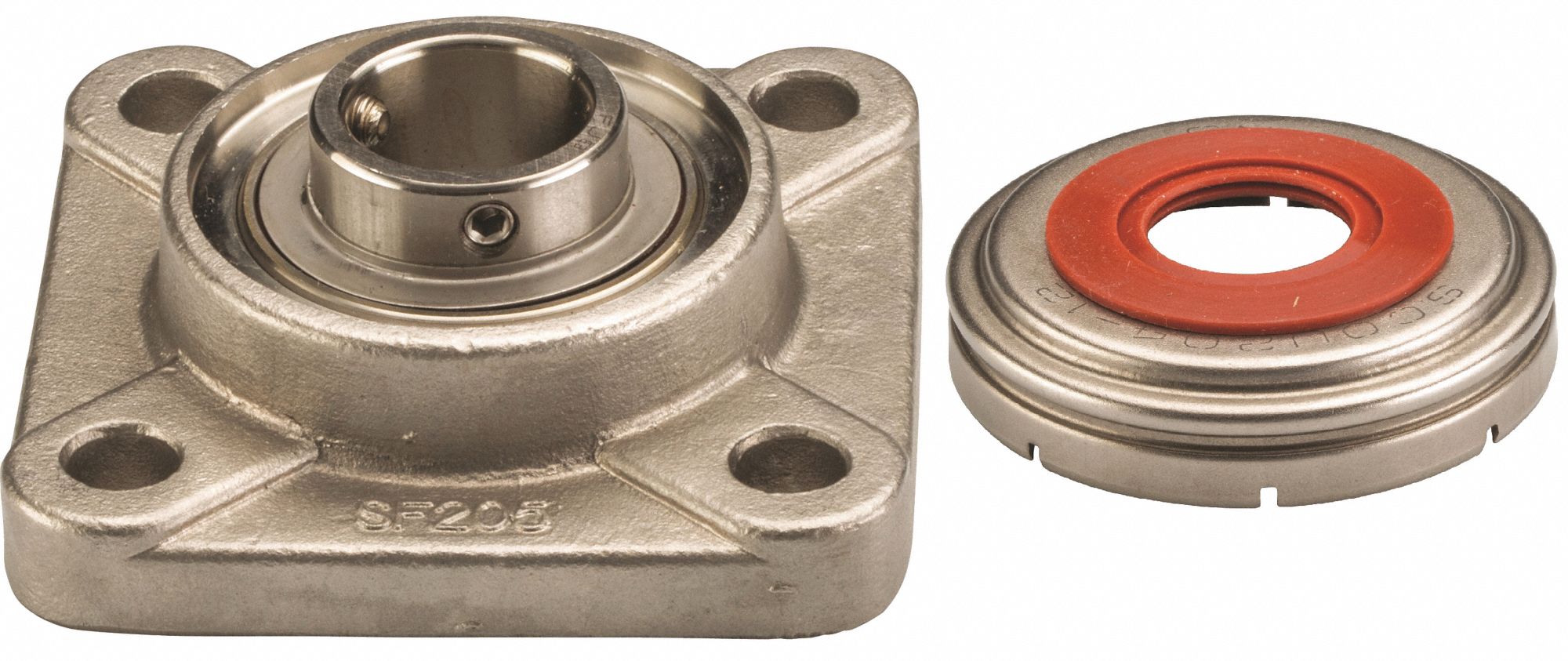

The NTN 4 Bolt Flange Bearing is a food-grade flange-mount radial ball bearing with a 1 1/2 in cylindrical bore and an open cap. It features set screws for mounting, a 5/8 in mounting bolt size, and is lubricated with FDA/USDA-H1 solid grease. This inch-system bearing measures 5 1/8 in length and 2 1/64 in width.

View Product & Quote

Technical Specifications

Parameter	Value
Lg	5 1/8 in
Wd	2 1/64 in
Bore	1 1/2 in
Type	SS, Set Screws
Brand	NTN
Bore Type	Cylindrical
Lubricant Material	FDA/USDA-H1 Solid Grease
Mounting Bolt Size	5/8 in
Included Bearing Cap	Open Cap
System Of Measurement	Inch
Manufacturer Part Number	SUCF208-24C0FG1
