Ntn 3G-OTH-106793 — Technical Specifications

Name: Ntn 3G-OTH-106793 NTN 4 Bolt Flange Bearing: Radial Ball, 1 7/16 in Bore, Polymer, Set Screws, 4 41/64 in Lg, Square (MPN SUCFPL207-23C0FG1). Key specifications — Bore Type: Cylindrical; Brand: NTN; Lubricant Material: FDA/USDA-H1 Solid Grease; Mounting Bolt Size: 1/2 in; System of Measurement: Inch; Included Bearing Cap: Open Cap.
Brand: Ntn

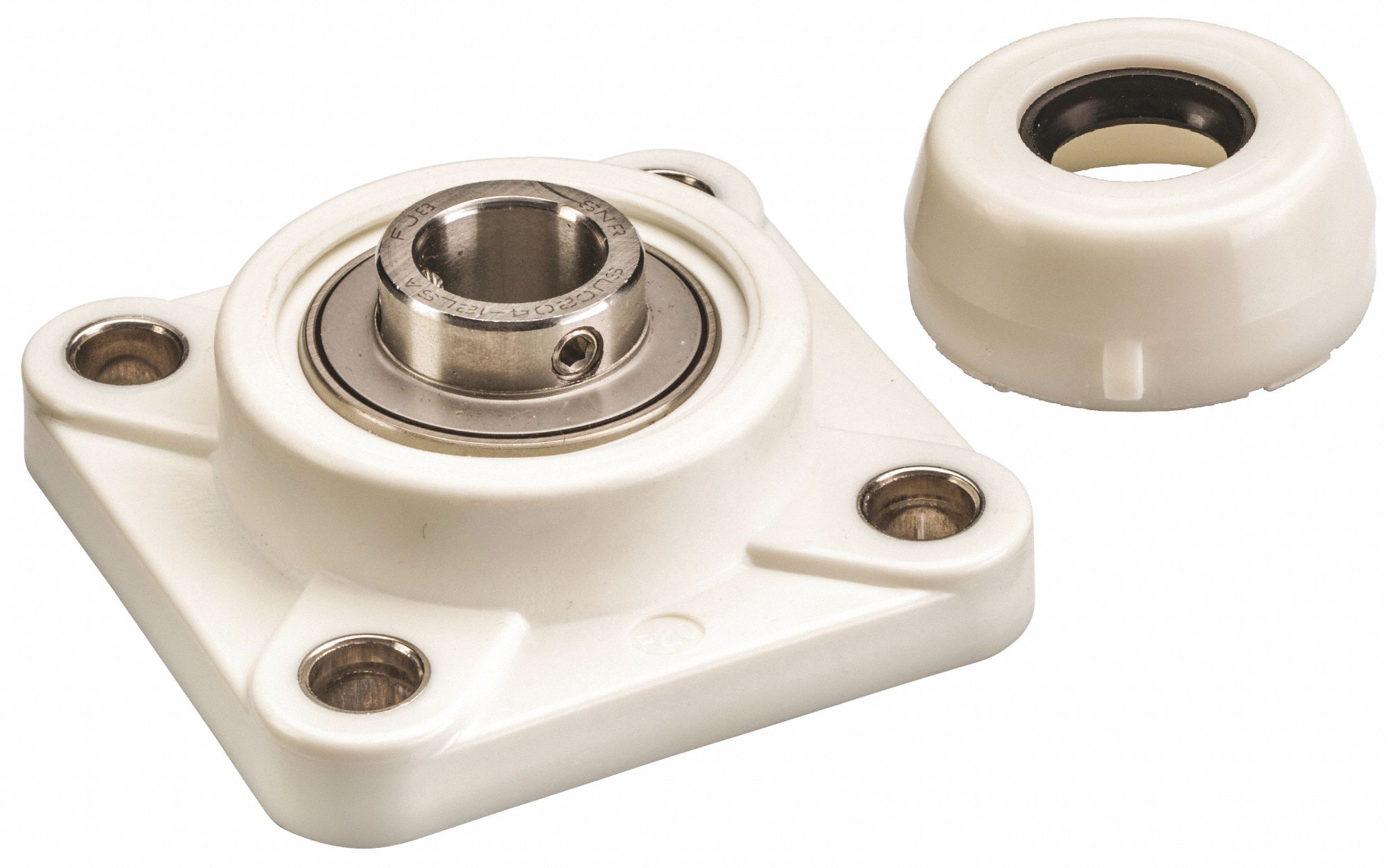

The NTN 4 Bolt Flange Bearing is a food-grade flange-mount radial ball bearing with a 1 7/16 in cylindrical bore and an open cap. It features FDA/USDA-H1 solid grease lubrication, a 1/2 in mounting bolt size, and set screws for secure shaft attachment. This inch-system bearing is constructed with a polymer housing and measures 4 41/64 in in length.

View Product & Quote

Technical Specifications

Parameter	Value
Lg	4 41/64 in
Bore	1 7/16 in
Type	Polymer, Set Screws, Square
Brand	NTN
Bore Type	Cylindrical
Lubricant Material	FDA/USDA-H1 Solid Grease
Mounting Bolt Size	1/2 in
Included Bearing Cap	Open Cap
System Of Measurement	Inch
Manufacturer Part Number	SUCFPL207-23C0FG1
