Ntn 3G-OTH-112409 — Technical Specifications

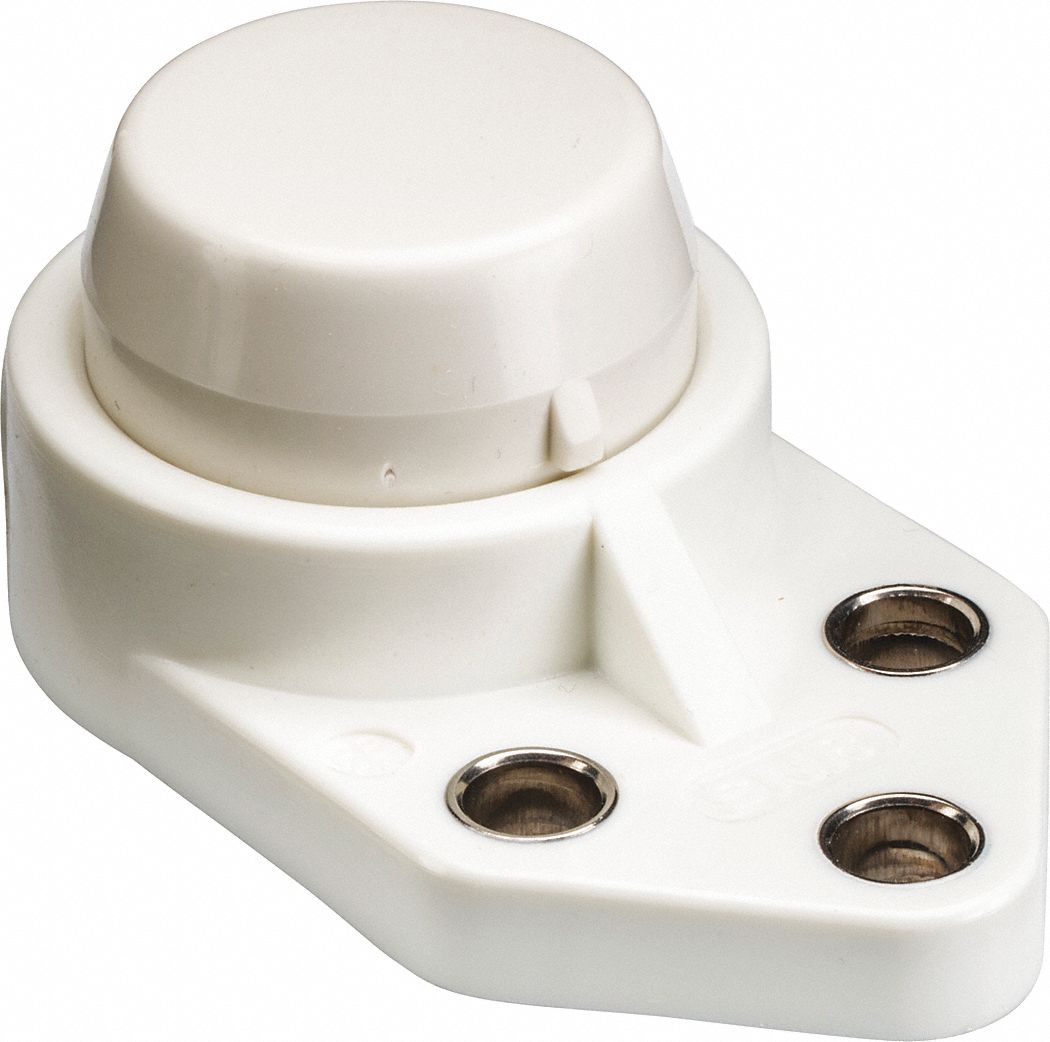

The NTN 3 Bolt Flange Bearing is a food-grade flange-mount radial ball bearing with a 1 1/4 in cylindrical bore, a polymer housing, and set screws. It features a closed cap and is lubricated with FDA/USDA-H1 solid grease. The bearing uses 3/8 in mounting bolts and has a length of 3 17/64 in (MPN SUCFBL206-20CCFG1).
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 3 17/64 in |
| Bore | 1 1/4 in |
| Type | Polymer, Set Screws |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | FDA/USDA-H1 Solid Grease |
| Mounting Bolt Size | 3/8 in |
| Included Bearing Cap | Closed Cap |
| System Of Measurement | Inch |
| Manufacturer Part Number | SUCFBL206-20CCFG1 |
