Ntn 3G-OTH-101494 — Technical Specifications

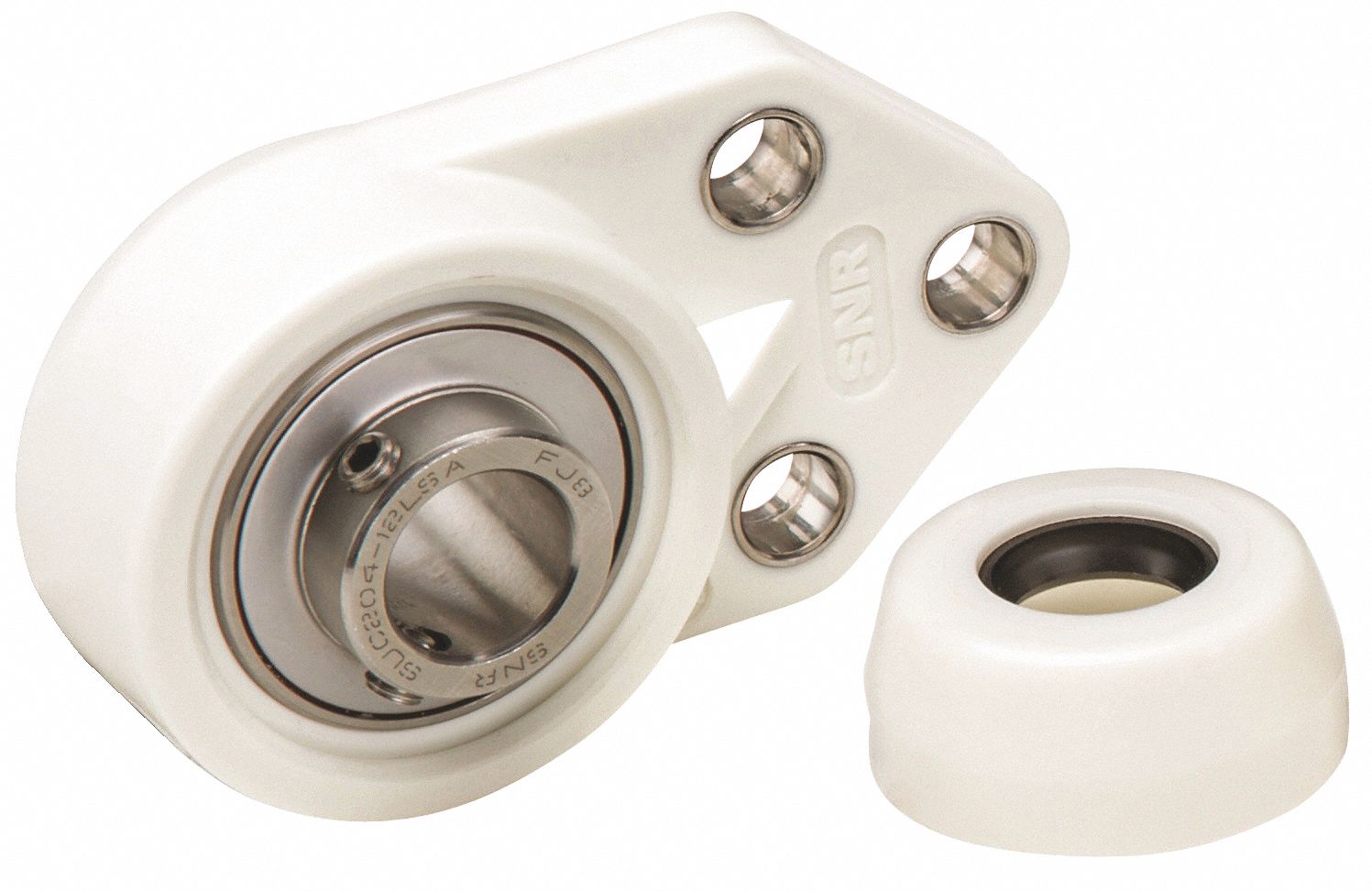

The NTN 3 Bolt Flange Bearing is a food-grade flange-mount radial ball bearing with a 1 3/16 in cylindrical bore and an open cap. It features a polymer housing, set screw locking, and a 3/8 in mounting bolt size. The bearing is lubricated with FDA/USDA-H1 solid grease, making it suitable for applications requiring incidental food contact.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 3 17/64 in |
| Bore | 1 3/16 in |
| Type | Polymer, Set Screws, Open Cap |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | FDA/USDA-H1 Solid Grease |
| Mounting Bolt Size | 3/8 in |
| Included Bearing Cap | Open Cap |
| System Of Measurement | Inch |
| Manufacturer Part Number | SUCFBL206-19C0FG1 |
