Ntn 3G-OTH-108068 — Technical Specifications

Name: Ntn 3G-OTH-108068 NTN 2 Bolt Flange Bearing: Radial Ball, 1 3/4 in Bore, SS, Set Screws, 7 5/64 in Lg, 2 13/64 in Wd (MPN SUCFL209-28C0FG1). Key specifications — Bore Type: Cylindrical; Brand: NTN; Lubricant Material: FDA/USDA-H1 Solid Grease; Mounting Bolt Size: 5/8 in; System of Measurement: Inch; Included Bearing Cap: Open Cap.
Brand: Ntn

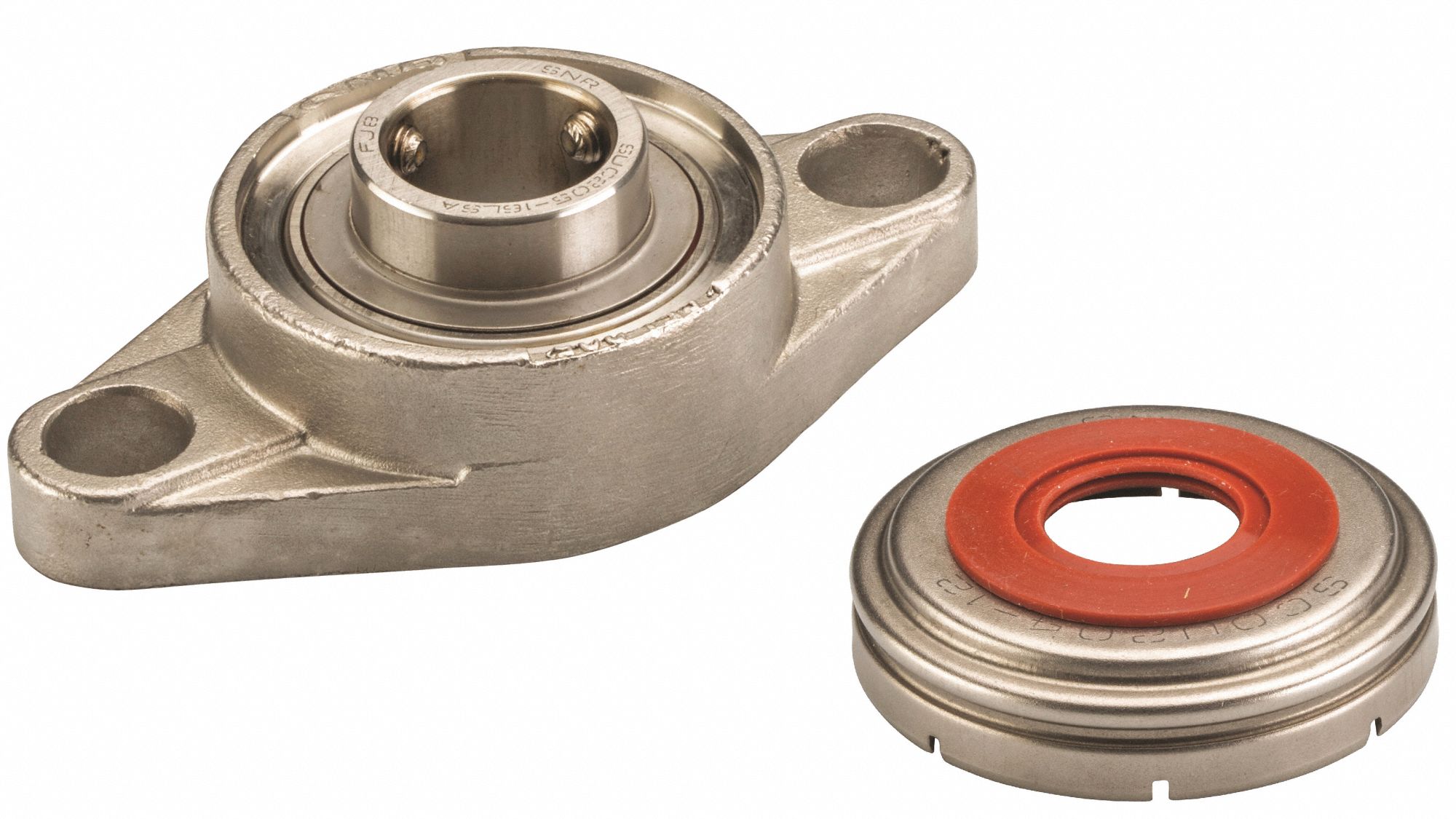

The NTN 2 Bolt Flange Bearing is a food-grade flange-mount radial ball bearing with a 1 3/4 in cylindrical bore, stainless steel construction, and set screw locking. It features an open cap, uses FDA/USDA-H1 solid grease lubrication, and has a 5/8 in mounting bolt size. This inch-system bearing measures 7 5/64 in length by 2 13/64 in width (MPN SUCFL209-28C0FG1).

View Product & Quote

Technical Specifications

Parameter	Value
Lg	7 5/64 in
Wd	2 13/64 in
Bore	1 3/4 in
Type	SS, Set Screws
Brand	NTN
Bore Type	Cylindrical
Lubricant Material	FDA/USDA-H1 Solid Grease
Mounting Bolt Size	5/8 in
Included Bearing Cap	Open Cap
System Of Measurement	Inch
Manufacturer Part Number	SUCFL209-28C0FG1
