Ntn 3G-OTH-101226 — Technical Specifications

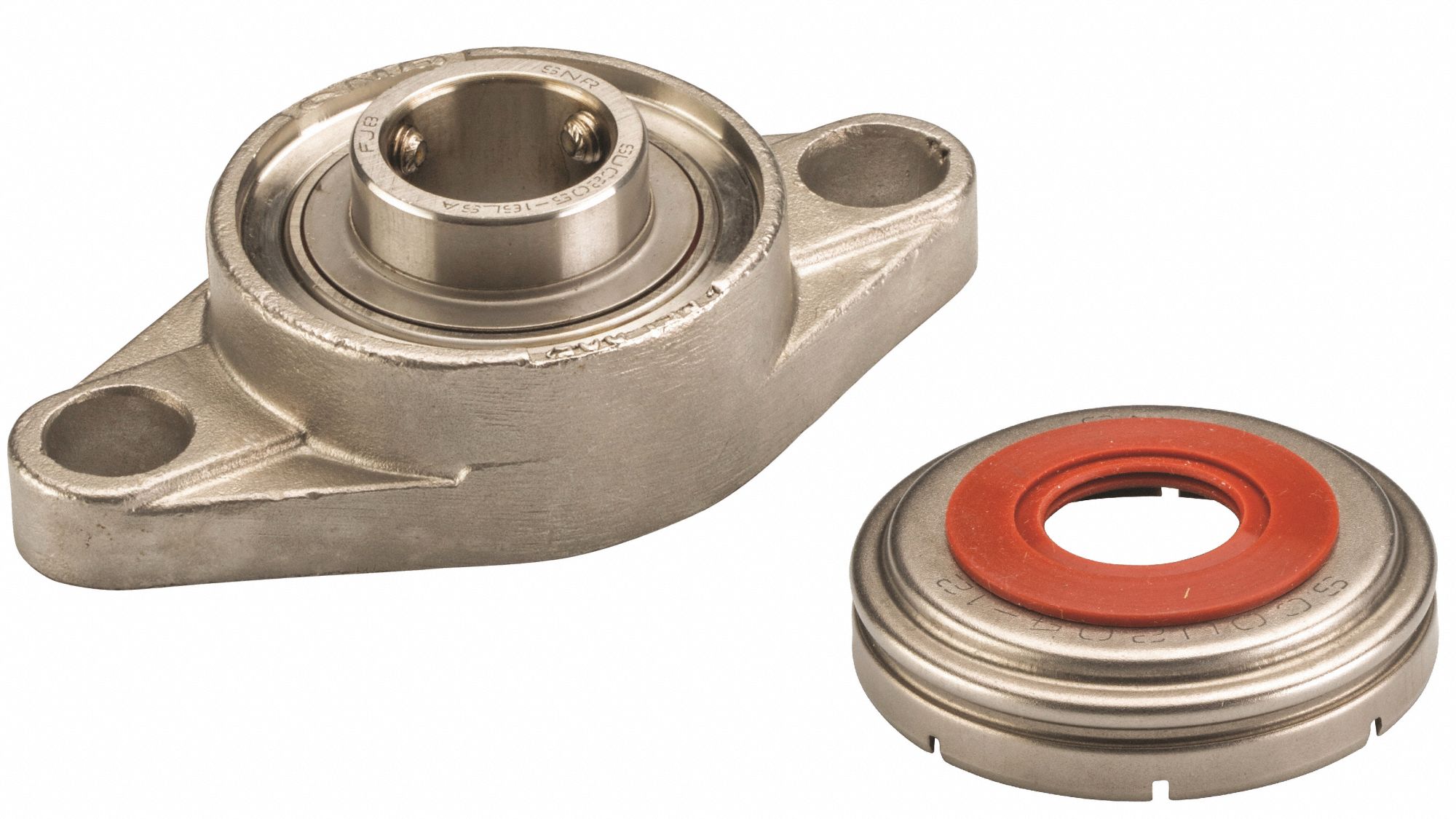

Name: Ntn 3G-OTH-101226 NTN 2 Bolt Flange Bearing: Radial Ball, 1 in Bore, SS, Set Screws, 4 29/32 in Lg, 1 13/32 in Wd (MPN SUCFL205-16C0FG1). Key specifications — Bore Type: Cylindrical; Brand: NTN; Lubricant Material: FDA/USDA-H1 Solid Grease; Mounting Bolt Size: 5/8 in; System of Measurement: Inch; Included Bearing Cap: Open Cap.
Brand: Ntn

The NTN 2 Bolt Flange Bearing is a food-grade flange-mount radial ball bearing with a 1 in cylindrical bore, designed for inch-system mounting with 5/8 in bolts. It features an open cap and is lubricated with FDA/USDA-H1 solid grease, making it suitable for applications requiring food-grade lubrication. The bearing measures 4 29/32 in in length and 1 13/32 in in width, with set screw locking for shaft attachment.

View Product & Quote

Technical Specifications

Parameter	Value
Lg	4 29/32 in
Wd	1 13/32 in
Bore	1 in
Type	SS, Set Screws
Brand	NTN
Bore Type	Cylindrical
Lubricant Material	FDA/USDA-H1 Solid Grease
Mounting Bolt Size	5/8 in
Included Bearing Cap	Open Cap
System Of Measurement	Inch
Manufacturer Part Number	SUCFL205-16C0FG1
