Ntn 3G-OTH-109914 — Technical Specifications

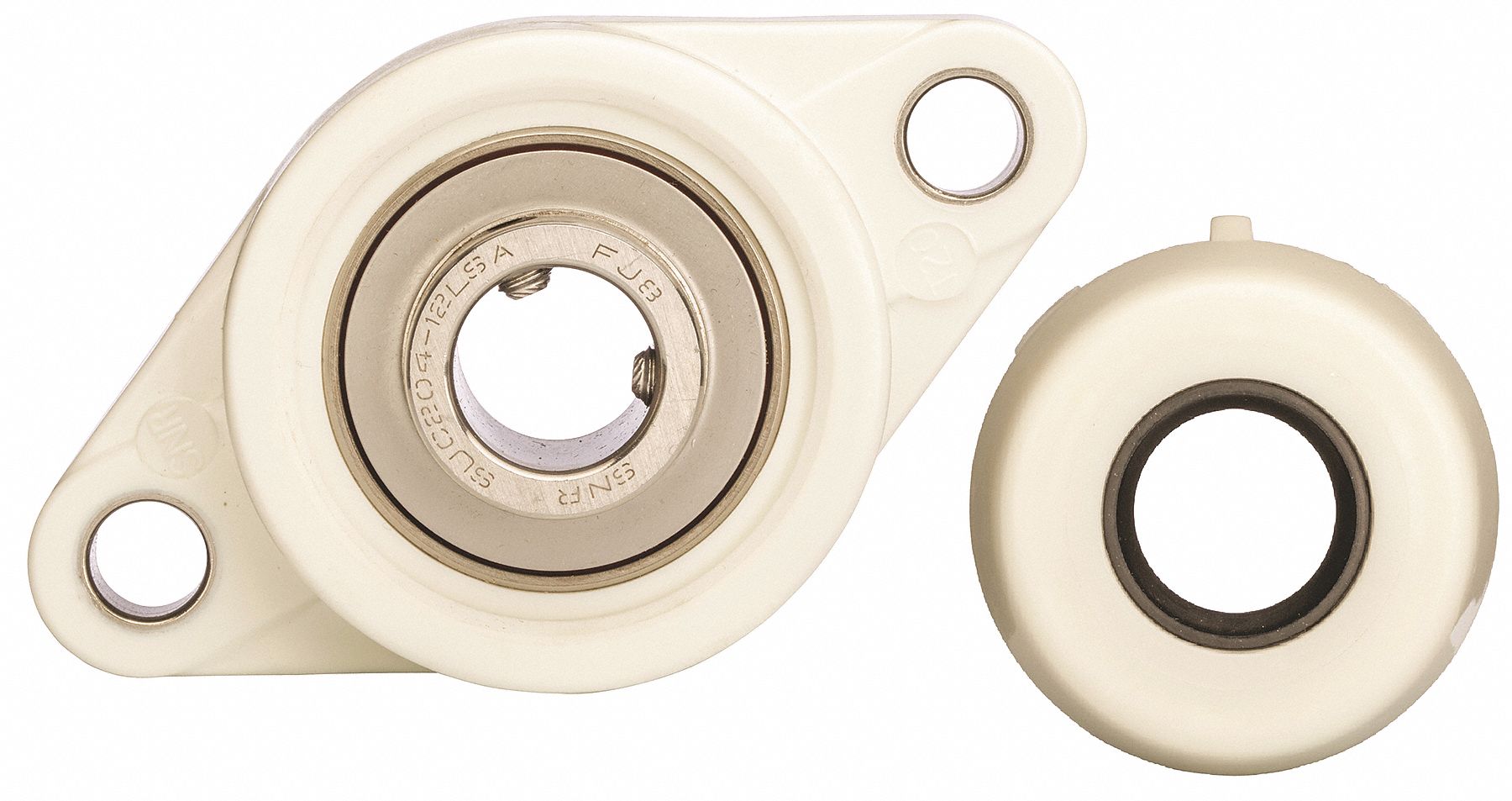

The NTN 2 Bolt Flange Bearing is a food-grade flange-mount radial ball bearing with a 1 7/16 in cylindrical bore, an open cap, and a polymer housing. It uses set screws for shaft mounting and is lubricated with FDA/USDA-H1 solid grease. The bearing has a 1/2 in mounting bolt size and a rhombus shape with a 6 13/32 in length, measured in inches.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 6 13/32 in |
| Bore | 1 7/16 in |
| Type | Polymer, Set Screws, Rhombus |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | FDA/USDA-H1 Solid Grease |
| Mounting Bolt Size | 1/2 in |
| Included Bearing Cap | Open Cap |
| System Of Measurement | Inch |
| Manufacturer Part Number | SUCNFL207-23C0FG1 |
