Ntn 3G-OTH-107810 — Technical Specifications

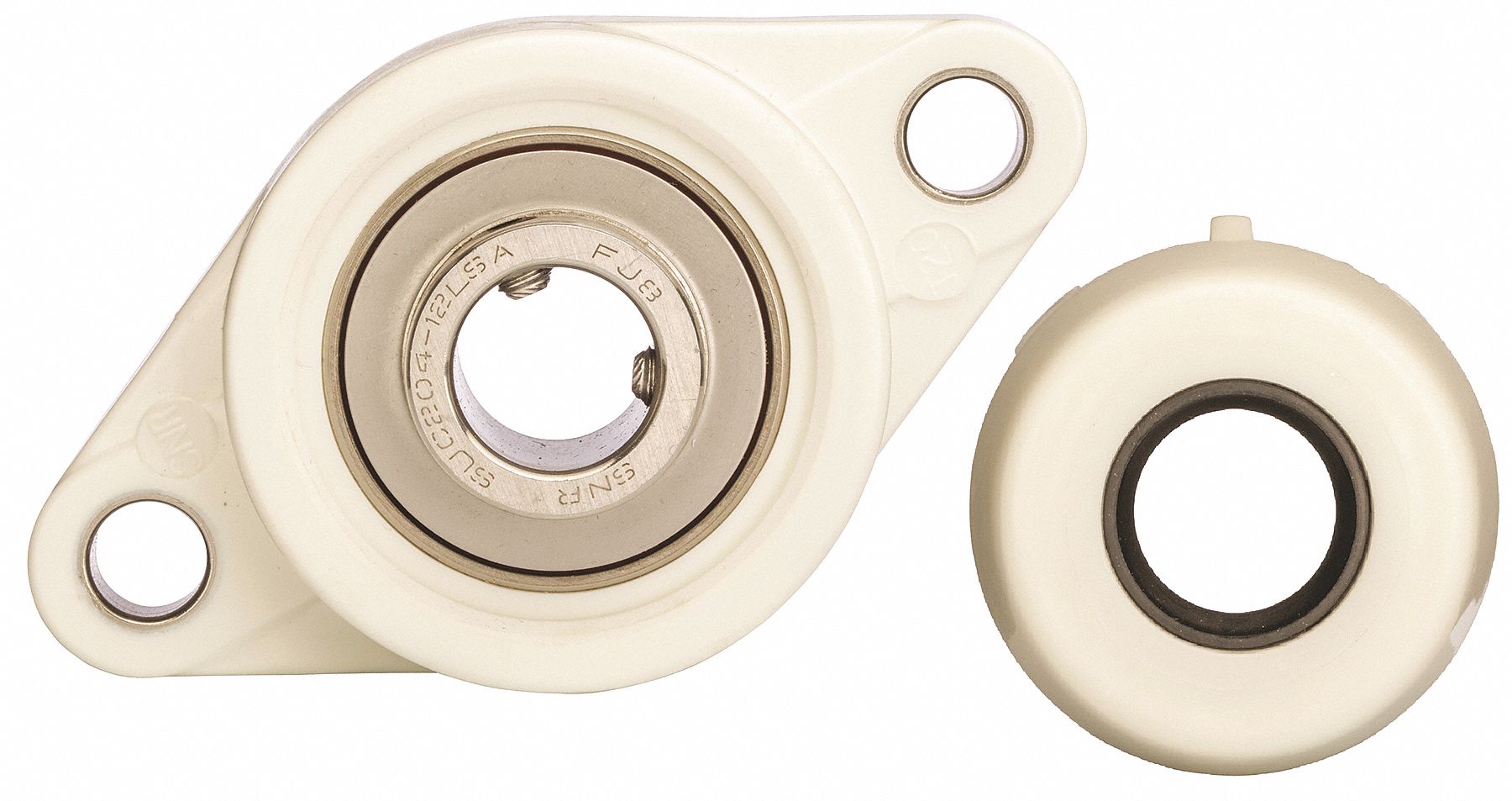

The NTN 2 Bolt Flange Bearing is a food-grade flange-mount radial ball bearing with a 1 in cylindrical bore, designed for inch-system mounting with 3/8 in bolts. It features an open cap, polymer construction, set screws, and is lubricated with FDA/USDA-H1 solid grease. Dimensions are 5 7/64 in length and 2 in width, with the manufacturer part number SUCNFL205-16C0FG1.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 5 7/64 in |
| Wd | 2 in |
| Bore | 1 in |
| Type | Polymer, Set Screws, 440C |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | FDA/USDA-H1 Solid Grease |
| Mounting Bolt Size | 3/8 in |
| Included Bearing Cap | Open Cap |
| System Of Measurement | Inch |
| Manufacturer Part Number | SUCNFL205-16C0FG1 |
