Ntn 3G-OTH-102418 — Technical Specifications

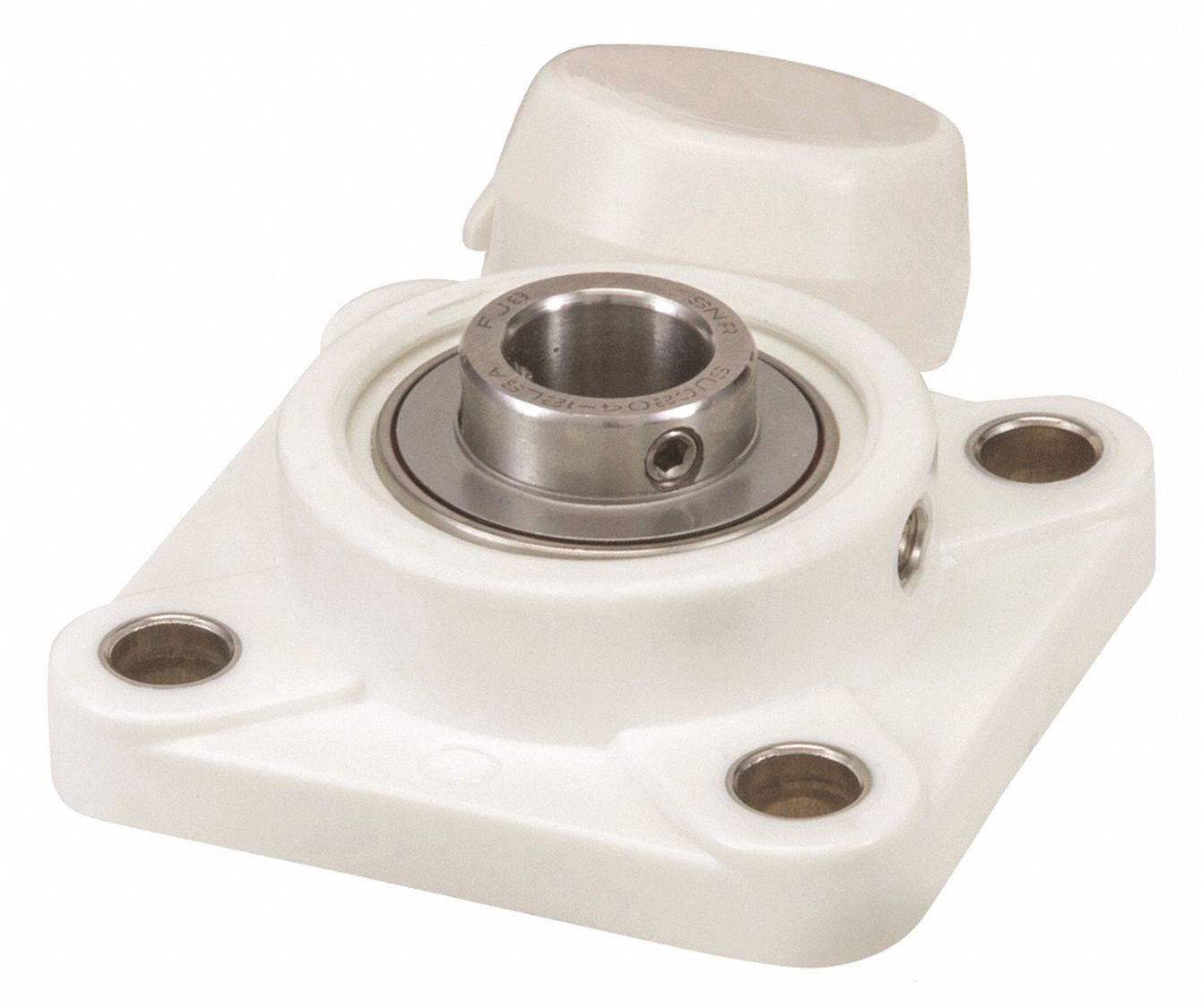

The NTN 4 Bolt Flange Bearing is a food-grade flange-mount radial ball bearing with a 1 1/4 in cylindrical bore, a polymer housing, and set screws. It features a closed cap and is lubricated with FDA/USDA-H1 solid grease. The bearing uses 1/2 in mounting bolts and is measured in inches (MPN SUCFPL207-20CCFG1).
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 4 41/64 in |
| Bore | 1 1/4 in |
| Type | Polymer, Set Screws, Square |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | FDA/USDA-H1 Solid Grease |
| Mounting Bolt Size | 1/2 in |
| Included Bearing Cap | Closed Cap |
| System Of Measurement | Inch |
| Manufacturer Part Number | SUCFPL207-20CCFG1 |
