Ntn 3G-OTH-04442 — Technical Specifications

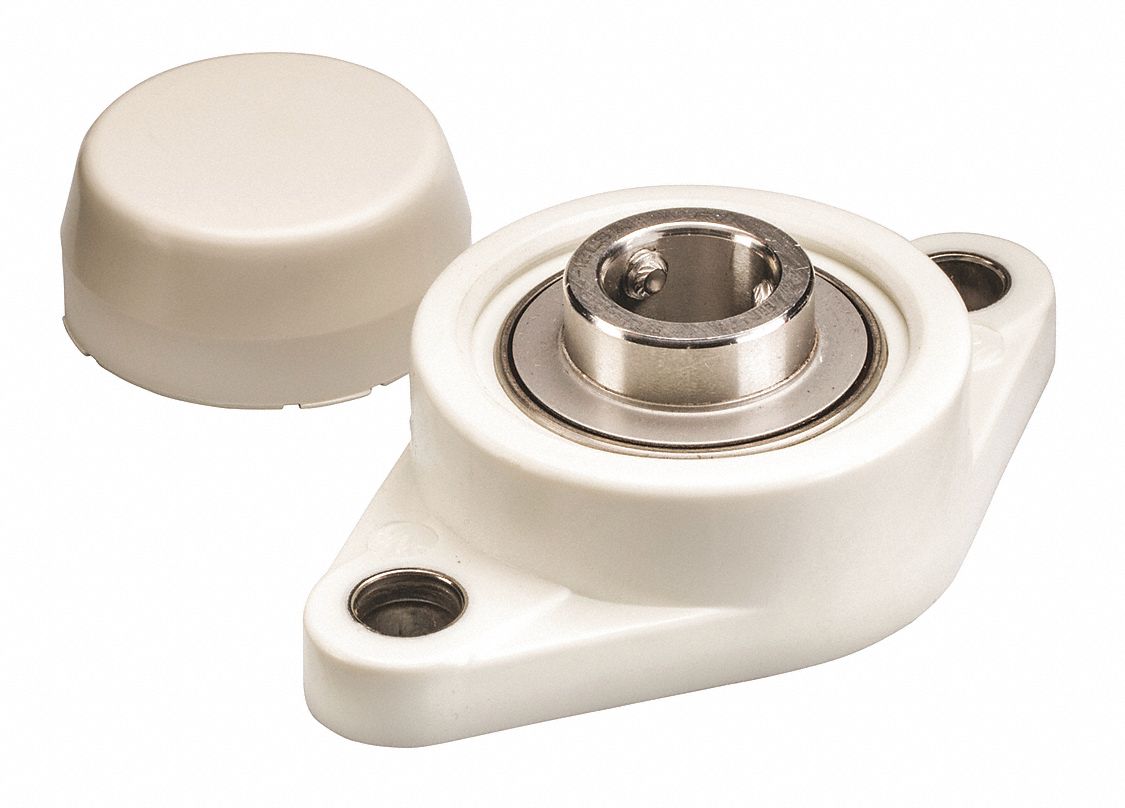

The NTN 2 Bolt Flange Bearing is a food-grade flange-mount radial ball bearing with a 1 7/16 in cylindrical bore, a polymer housing, and set screws. It features an FDA/USDA-H1 solid grease lubricant and a closed cap, with a 1/2 in mounting bolt size and a 6 13/32 in rhombus length (MPN SUCNFL207-23CCFG1).
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 6 13/32 in |
| Bore | 1 7/16 in |
| Type | Polymer, Set Screws, Rhombus |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | FDA/USDA-H1 Solid Grease |
| Mounting Bolt Size | 1/2 in |
| Included Bearing Cap | Closed Cap |
| System Of Measurement | Inch |
| Manufacturer Part Number | SUCNFL207-23CCFG1 |
