Ntn 3G-OTH-107140 — Technical Specifications

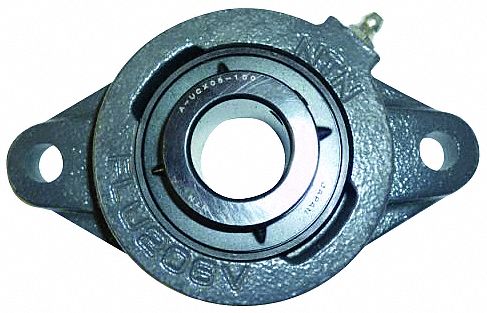

The NTN 2 Bolt Flange Bearing is a general purpose flange-mount ball bearing with a 3/4 in cylindrical bore, cast iron housing, and set screw locking. It features a rhombus flange shape, 4 7/16 in length, and uses NLGI #3 equivalent lubricant. The mounting bolt size is 3/8 in, and the system of measurement is inch.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 4 7/16 in |
| Bore | 3/4 in |
| Type | Cast Iron, Set Screws, Rhombus |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | NLGI #3 Equivalent |
| Mounting Bolt Size | 3/8 in |
| System Of Measurement | Inch |
| Manufacturer Part Number | UCFLU-3/4MFG1 |
