Ntn 3G-OTH-100693 — Technical Specifications

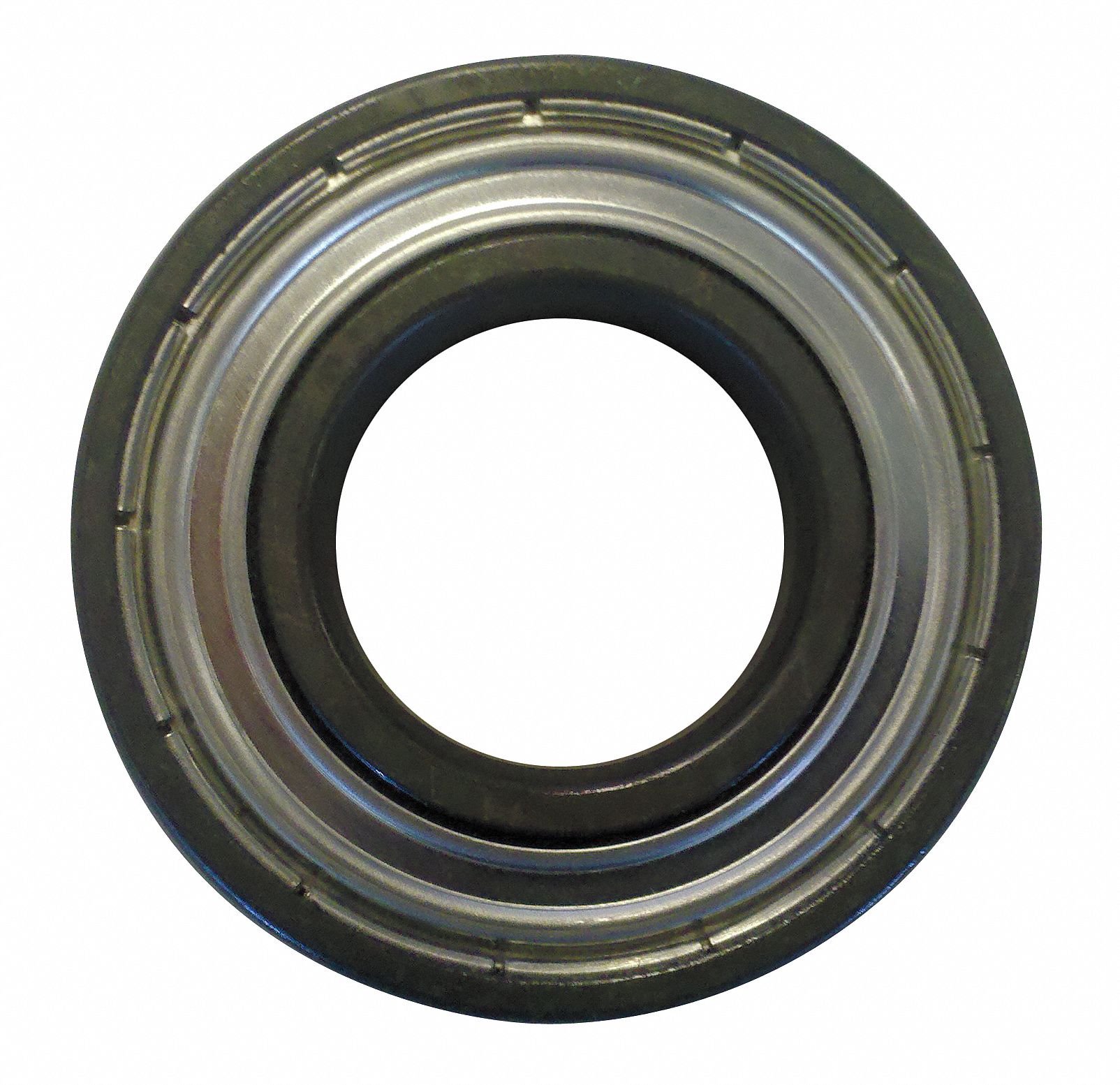

The NTN Radial Ball Bearing, model 6206, is a metric high-temperature radial ball bearing with a 30 mm bore, 62 mm OD, and 16 mm width. It features double shields and an alloy steel ring, identified by bearing industry number 6206 and manufacturer part number 6206F604.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 62 mm |
| Wd | 16 mm |
| Bore | 30 mm |
| Type | Dbl Shield, Alloy Steel Ring, 1 |
| System Of Measurement | Metric |
| Bearing Industry Number | 6206 |
| Manufacturer Part Number | 6206F604 |
