Ntn 3G-OTH-101270 — Technical Specifications

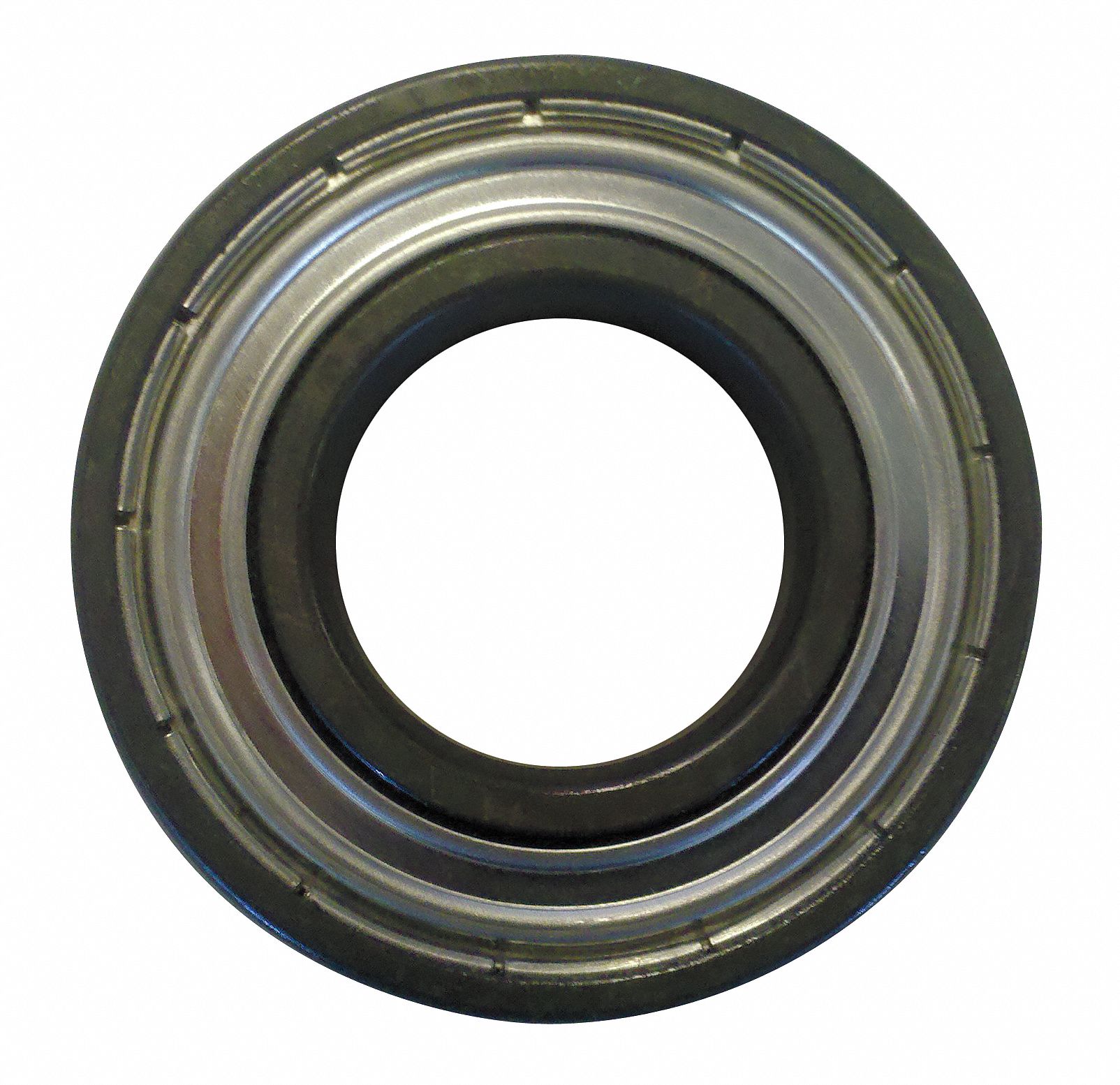

The NTN Radial Ball Bearing 6204 is a metric high-temperature radial ball bearing with a 20 mm bore, 47 mm OD, and 14 mm width. It features double shields and an alloy steel ring, identified by bearing industry number 6204 and manufacturer part number 6204F604.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 47 mm |
| Wd | 14 mm |
| Bore | 20 mm |
| Type | Dbl Shield, Alloy Steel Ring, 1 |
| System Of Measurement | Metric |
| Bearing Industry Number | 6204 |
| Manufacturer Part Number | 6204F604 |
