Ntn 3G-OTH-100268 — Technical Specifications

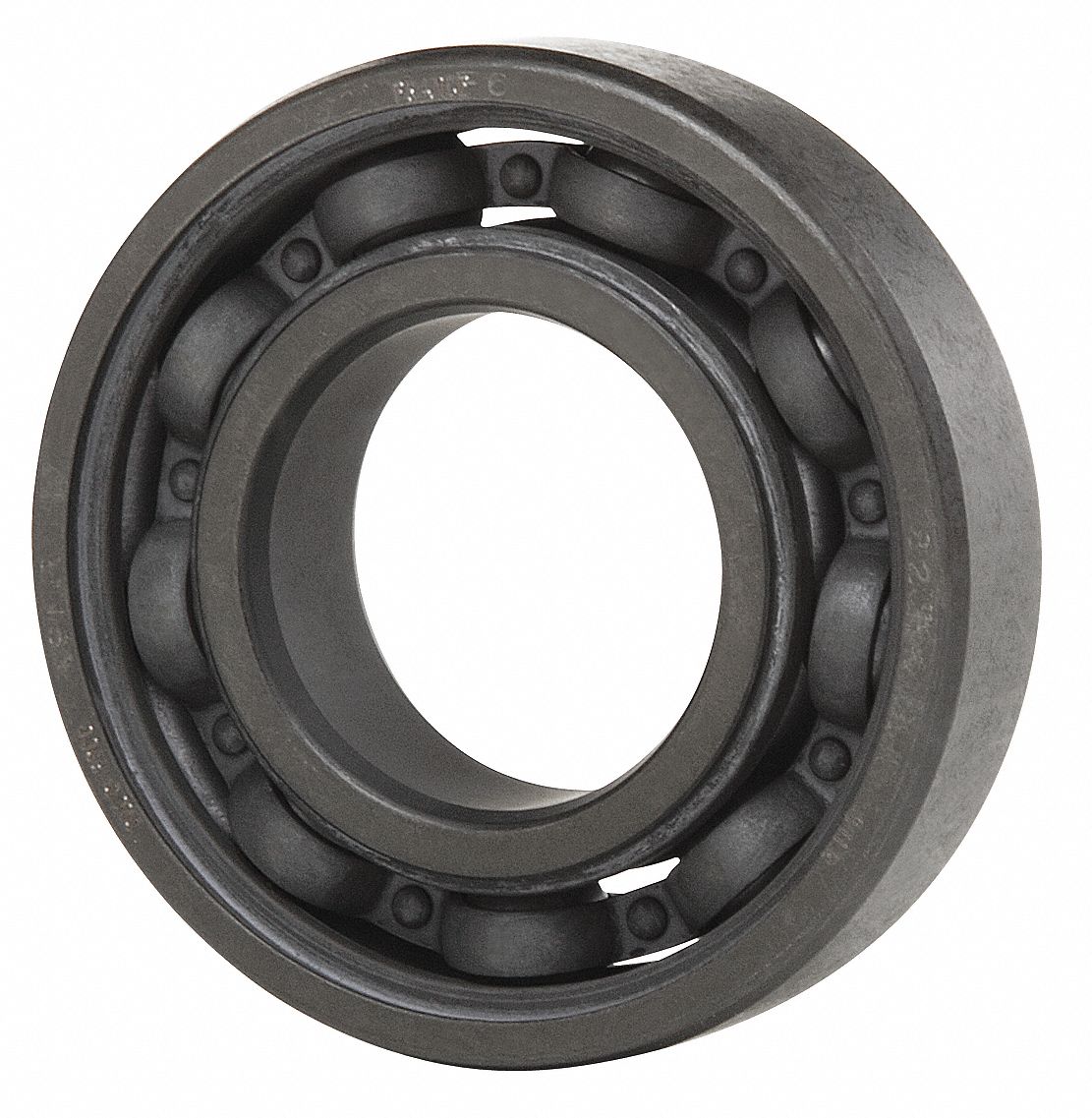

The NTN Radial Ball Bearing, model 6205, is a metric high-temperature radial ball bearing with a 25 mm bore, 52 mm OD, and 15 mm width. It features an open design with alloy steel rings and is identified by the manufacturer part number 6205F600.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 52 mm |
| Wd | 15 mm |
| Bore | 25 mm |
| Type | Open, Alloy Steel Ring, 1 |
| System Of Measurement | Metric |
| Bearing Industry Number | 6205 |
| Manufacturer Part Number | 6205F600 |
