Ntn 3G-OTH-101026 — Technical Specifications

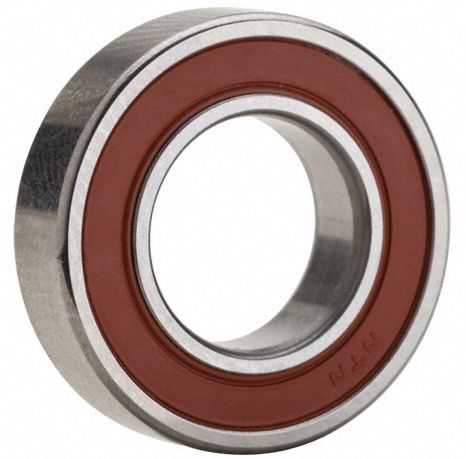

The NTN Radial Ball Bearing: 6203 is a metric high-temperature radial ball bearing with a 17 mm bore, 40 mm OD, and 12 mm width. It features double shields and an alloy steel ring, identified by bearing industry number 6203 and manufacturer part number 6203HT200ZZ.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 40 mm |
| Wd | 12 mm |
| Bore | 17 mm |
| Type | Dbl Shield, Alloy Steel Ring, 1 |
| System Of Measurement | Metric |
| Bearing Industry Number | 6203 |
| Manufacturer Part Number | 6203HT200ZZ |
