Nicholson 3G-OTH-73254 — Technical Specifications

Name: Nicholson 3G-OTH-73254 Steam Trap: Cast Iron, 1/2 in FNPT, 500 lb/hr, 250 psi Max., 450°F Max., In-line (MPN 1/2 NFT250-250). Key specifications — Brand: NICHOLSON; Installation Orientation: Horizontal; Float Material: Stainless Steel; Manufacturer Series: NFT 250.
Brand: Nicholson

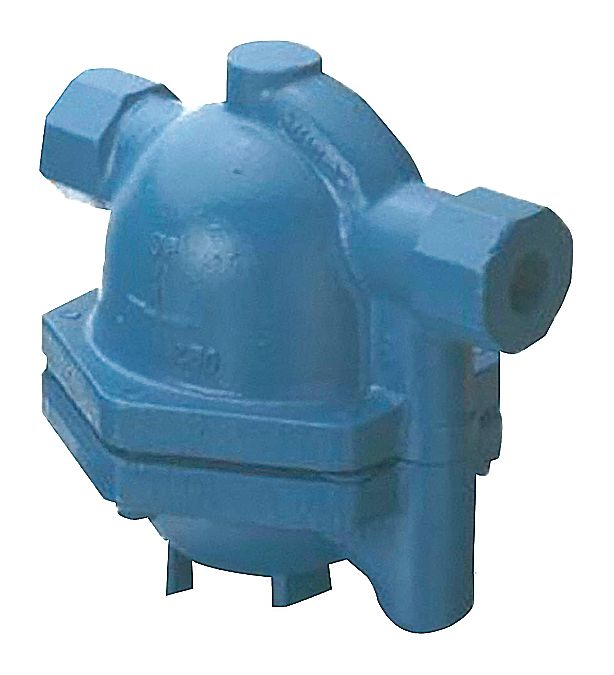

The NICHOLSON NFT 250 is a cast iron in-line float and thermostatic steam trap with a 1/2 in FNPT connection. It is rated for 500 lb/hr capacity, 250 psi maximum pressure, and 450°F maximum temperature. The trap features a stainless steel float and is designed for horizontal installation.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	NICHOLSON
Float Material	Stainless Steel
Manufacturer Series	NFT 250
Installation Orientation	Horizontal
Manufacturer Part Number	1/2 NFT250-250
