Murrelektronik 3G-OTH-08503 — Technical Specifications

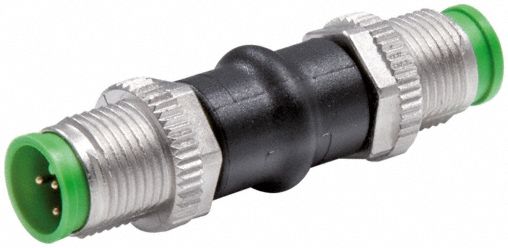

The MURRELEKTRONIK Circular Connector is an M12 4-Pole Male x M12 4-Pole Female gender adapter with B coding, designed for Profibus and Interbus applications. It features a male-to-male connector body, a straight orientation, and a zinc die-cast housing with an IP67 rating. The adapter supports a voltage rating of 800V and uses a cable-to-cable mounting style with M12 male x male thread size.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | B Coded, PUR/Zinc Die-Cast |
| Brand | MURRELEKTRONIK |
| Coding | B |
| IP Rating | IP67 |
| Application | Profibus |
| Thread Size | M12 Male x M12 Male |
| Mounting Type | Cable To Cable |
| Mounting Style | Cable-to-Cable Adapter |
| Voltage Rating | 800V |
| Connection Type | Pin |
| Housing Material | Zinc Die-Cast |
| Connector Body Type | Male x Male |
| Connector Application | B-Coded for Profibus & Interbus |
| Connector Orientation | Straight |
| Manufacturer Part Number | 7000-44201-0000000 |
| Adapter Pole Configuration | M12 4-Pole Male x M12 4-Pole Female |
