Murrelektronik 3G-OTH-08628 — Technical Specifications

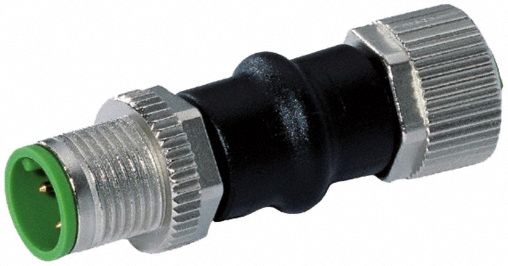

The MURRELEKTRONIK Circular Connector is an M12 4-Pole Male x M12 4-Pole Female gender adapter with A-coding, rated IP67 and 800V. It features a PUR housing, straight orientation, and cable-to-cable mounting style, designed for signal, low-power, and gigabit data applications as a voltage/current converter.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | A Coded, PUR/Zinc Die-Cast |
| Brand | MURRELEKTRONIK |
| Coding | A |
| IP Rating | IP67 |
| Application | Voltage/Current Converter |
| Thread Size | M12 Male x M12 Female |
| Mounting Type | Cable to Cable |
| Mounting Style | Cable-to-Cable Adapter |
| Voltage Rating | 800V |
| Connection Type | Pin and Socket |
| Housing Material | PUR |
| Connector Body Type | Male x Female |
| Connector Application | A-Coded for Signal, Low-Power, and Gigabit Data |
| Connector Orientation | Straight |
| Manufacturer Part Number | 7000-42252-0000000 |
| Adapter Pole Configuration | M12 4-Pole Male x M12 4-Pole Female |
