Murrelektronik 3G-OTH-08669 — Technical Specifications

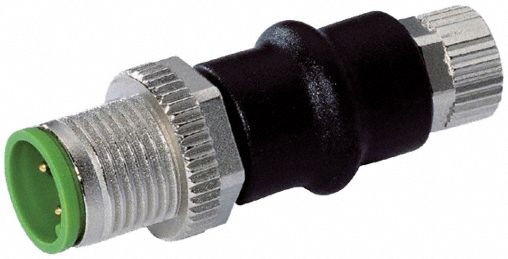

The MURRELEKTRONIK Circular Connector (MPN 7000-42211-0000000) is an M12 x M8 circular connector adapter with an M12 4-pole male to M8 4-pole female configuration. It features A-coding, a straight connector orientation, and a zinc die-cast housing with an IP67 rating. The adapter is rated for 50V AC/60V DC and a 4 A nominal current, designed for use with M12 4-pole distribution boxes.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | A, IP67 |
| Brand | MURRELEKTRONIK |
| Coding | A |
| IP Rating | IP67 |
| Application | M12 4-Pole Distribution Box |
| Nominal Current | 4 A |
| Nominal Voltage | 50V AC/60V DC |
| Housing Material | Zinc Die-Cast |
| Connector Orientation | Straight |
| Manufacturer Part Number | 7000-42211-0000000 |
| Adapter Pole Configuration | M12 4-Pole Male x M8 4-Pole Female |
